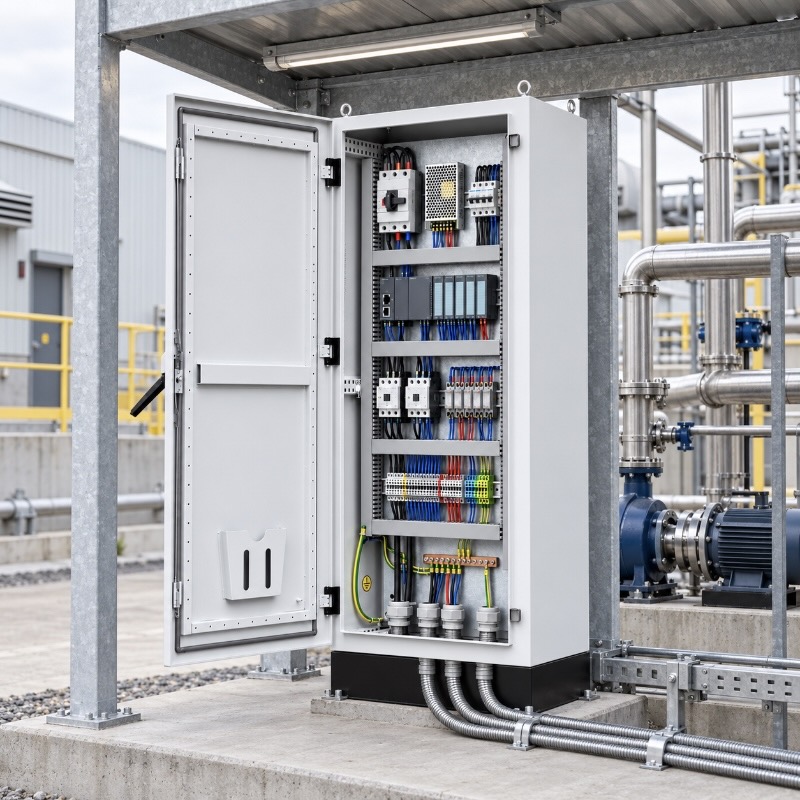

Custom sheet metal enclosure designed for PLCs, relays, terminal blocks, power supplies and other industrial automation components. Mounting plates, DIN rail supports, cable entries, ventilation and access features can be customized according to the electrical layout.
Material :
Carbon Steel / Galvanized Steel / Stainless Steel / AluminumCommon Grade :
SPCC / DC01 / SGCC / 304 / 316 / 5052 / Project-SpecifiedThickness :
According to DrawingSize :
Custom to DrawingSurface Finish :
Powder Coating / Brushed / Passivation / Anodizing / Project-SpecifiedManufacturing Process :
Laser Cutting / CNC Punching / Bending / Welding / Finishing / Assembly Mounting Plate: Optional / CustomMounting Plate :
Optional / CustomCable Entry :
Project-SpecifiedDIN Rail Support :
CustomSupply Scope :
Metalwork Only / Hardware Installation / Component Assembly / Wiring IntegrationAssembly Basis :
Approved Drawing / BOM / Wiring Diagram / SampleApplication :
PLC Control Systems · Industrial Automation · Machine Control · Electrical Control Equipment
Overview
This enclosure is developed around the actual PLC, relay, terminal block, power supply and wiring layout. Mounting plates, DIN rail supports, cable entries, ventilation and service access can be coordinated before fabrication to support efficient electrical assembly and maintenance.
Applications: Industrial Automation · Electrical Control · Machinery
Recommended Materials

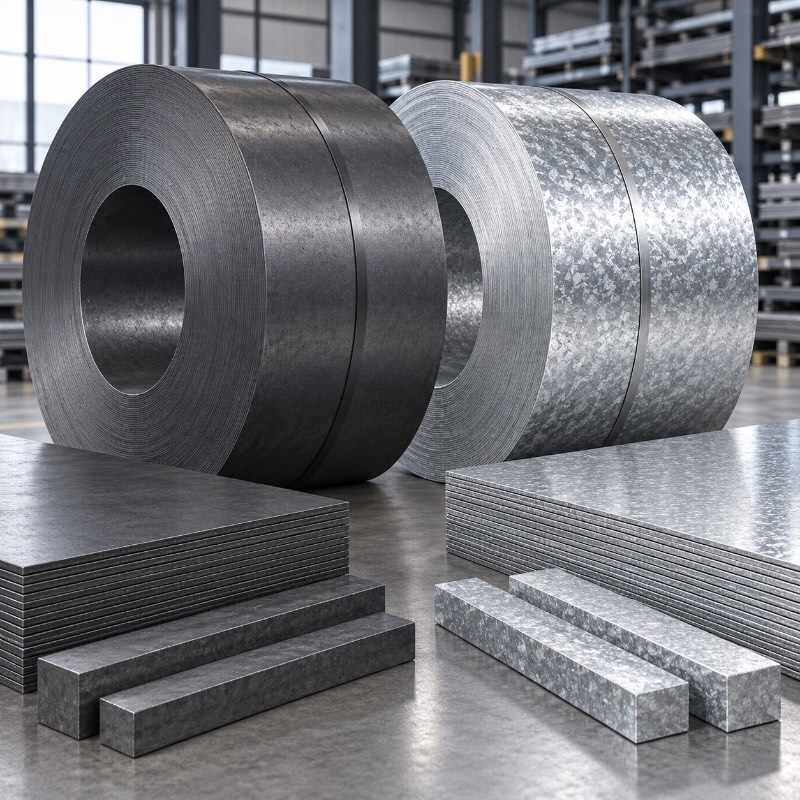

Carbon & Galvanized Steel
Coated Steel
Aluminum
Customization Options
Enclosure Customization Options
PLC & Component Mounting

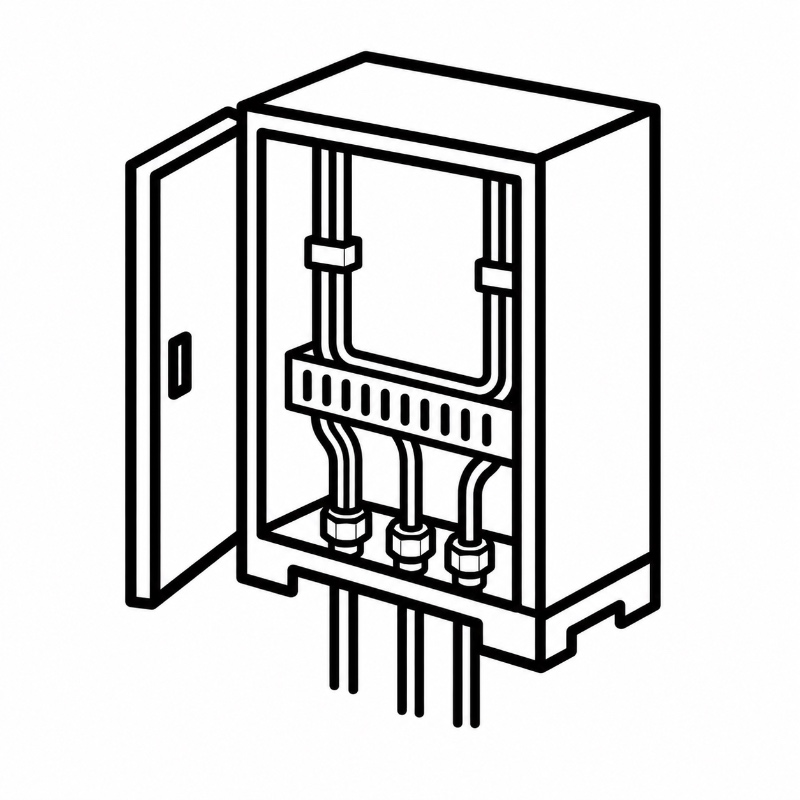

Wiring & Cable Entry
Cooling & Service Access
Key Design Considerations

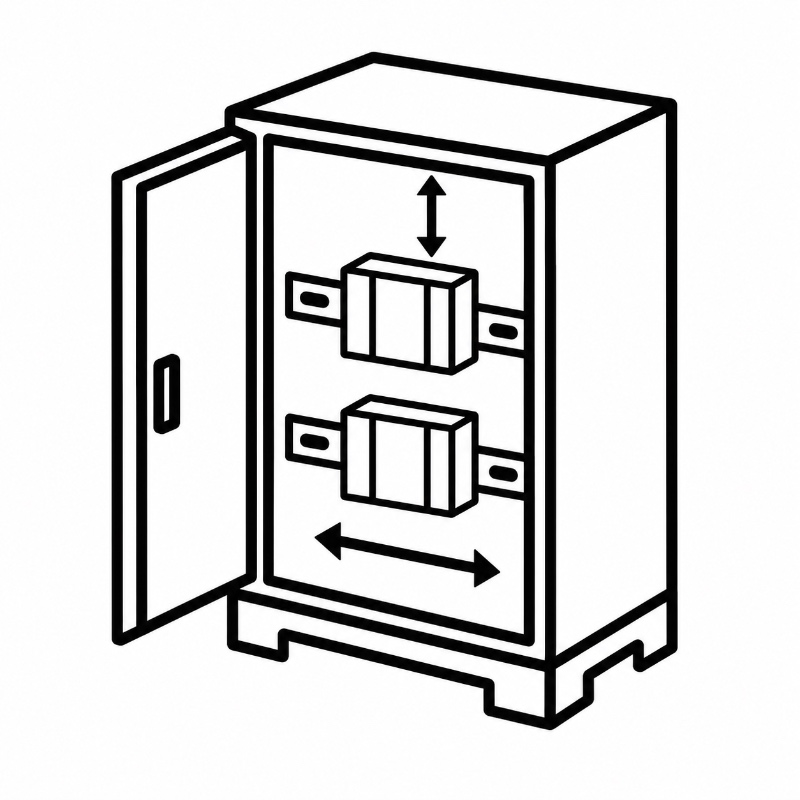

Component Clearance

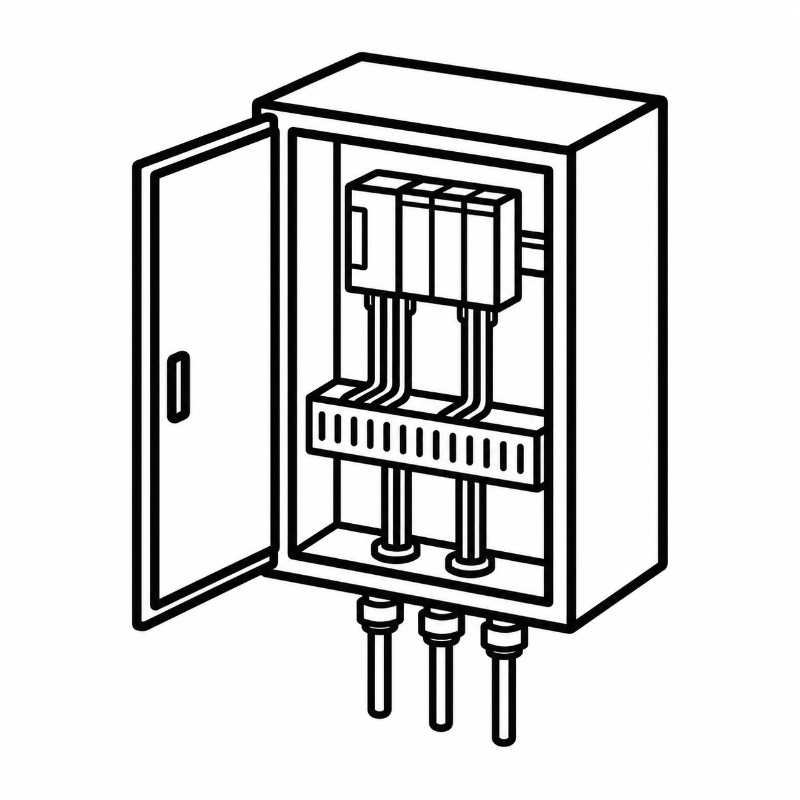

Wiring & Cable Management

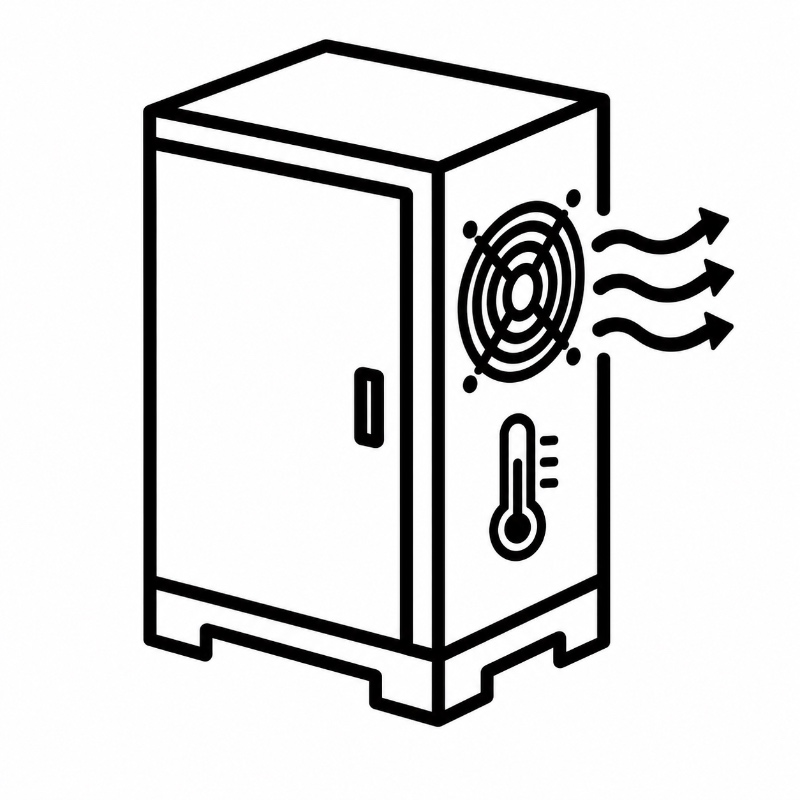

Thermal Management

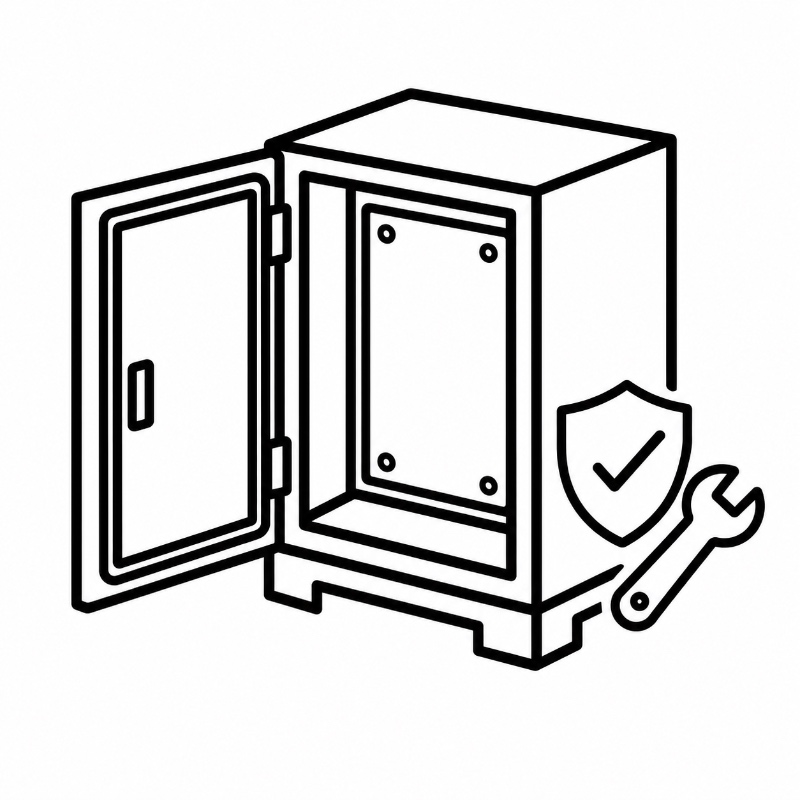

Protection & Service Access
Manufacturing Process
We provide an integrated manufacturing process covering precision sheet metal fabrication, surface finishing, hardware and component installation, mechanical assembly, internal wiring and final inspection.
Additional operations, including machining, deburring, grinding and tapping, can be incorporated according to the approved drawings and project requirements. Products can be supplied as empty enclosures, partially assembled units or wired cabinet assemblies based on customer-approved BOMs and wiring diagrams.
OEM Manufacturing Support
Prototype production and DFM review are available for new projects before volume manufacturing. Learn more on our Capabilities page
After-Sales Support
We support quality feedback, replacement parts, repeat production and approved design updates for ongoing OEM projects according to the agreed project scope.
FAQ
Yes. Mounting plates, DIN rail supports, cable entries, ventilation openings and internal brackets can be manufactured according to your PLC, relay, terminal and wiring layout.
Carbon steel, galvanized steel, stainless steel and aluminum are available, with the final material selected according to corrosion resistance, weight, finish and operating environment.
Yes. Prototype production can be used to verify component fit, mounting positions, cable entries, ventilation and enclosure assembly before mass production.
Yes. Material, coating, sealing and ventilation details can be selected according to the operating environment and project requirements.
