Custom Vacuum Filtration Enclosure
acuum filtration machine sheet metal
Mobile Vacuum Filtration Equipment

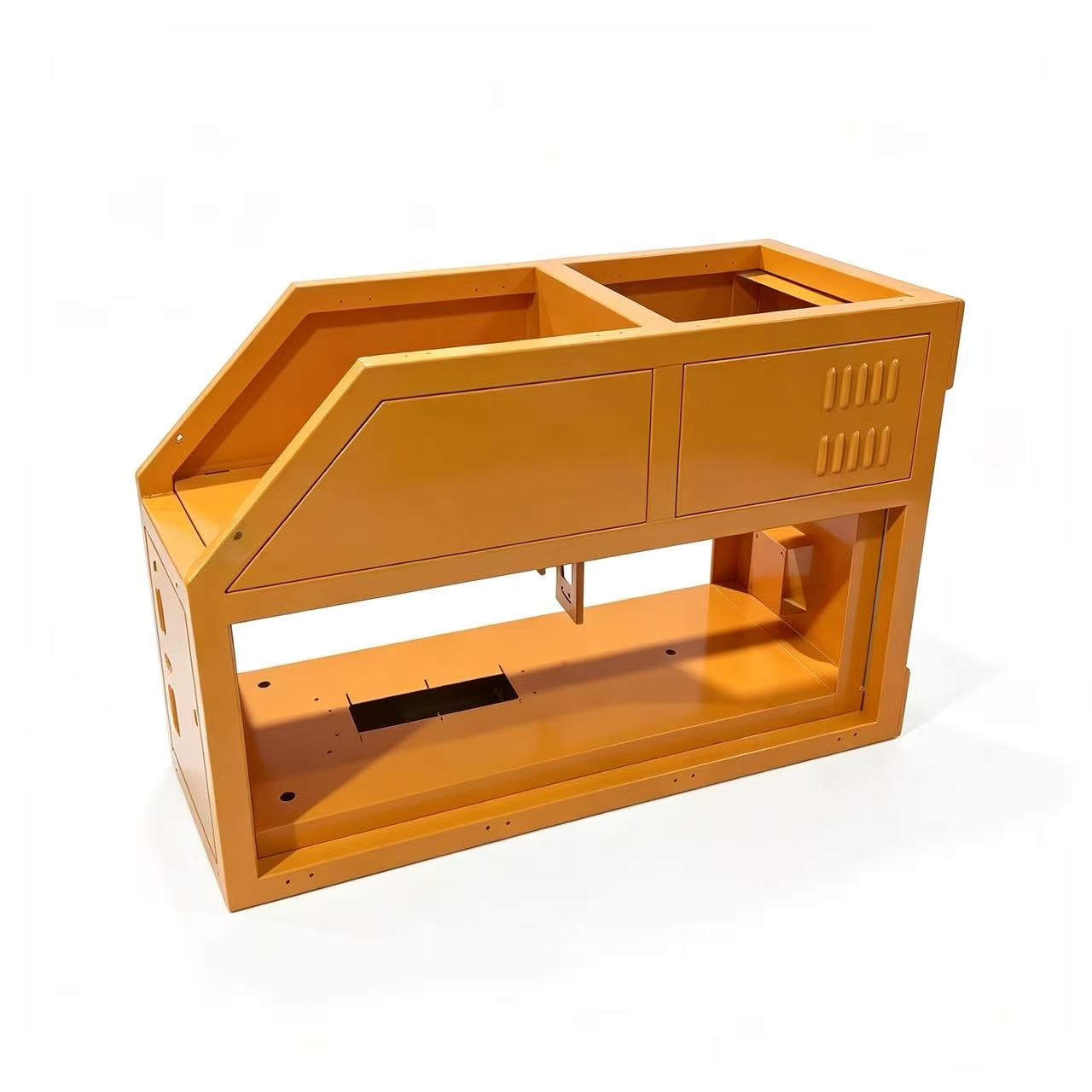

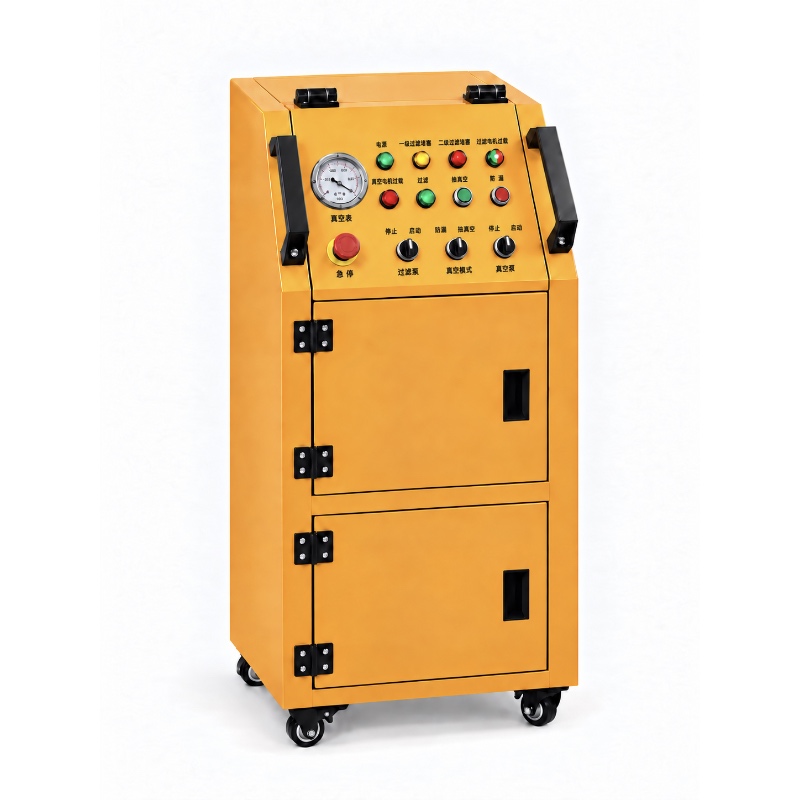

Industrial Vacuum Filtration Machine Enclosure

Custom sheet metal enclosure designed around vacuum filtration equipment, pumps, piping and control components. Panel layout, service openings, internal supports and surface finishes can be adapted to the equipment arrangement and operating environment.

  • Material :

    Carbon Steel / Stainless Steel / Aluminum

  • Common Grade :

    SPCC / DC01 / 304 / 316 / 5052 / Project-Specified

  • Thickness :

    According to Drawing

  • Size :

    Custom to Drawing

  • Surface Finish :

    Powder Coating / Brushed / Polished / Anodizing / Project-Specified

  • Manufacturing Process :

    Laser Cutting / CNC Punching / Bending / Welding / Finishing / Assembly Mounting Plate: Optional / Custom

  • Access Panels :

    Custom

  • Pipe & Cable Openings :

    Project-Specified

  • Internal Supports :

    Custom to Equipment Layout

  • Supply Scope :

    Metalwork Only / Hardware Installation / Component Assembly / Wiring Integration

  • Assembly Basis :

    Approved Drawing / BOM / Wiring Diagram / Sample

  • Application :

    Vacuum Filtration Equipment · Industrial Filtration · Fluid Processing · Factory Equipment

  • Overview

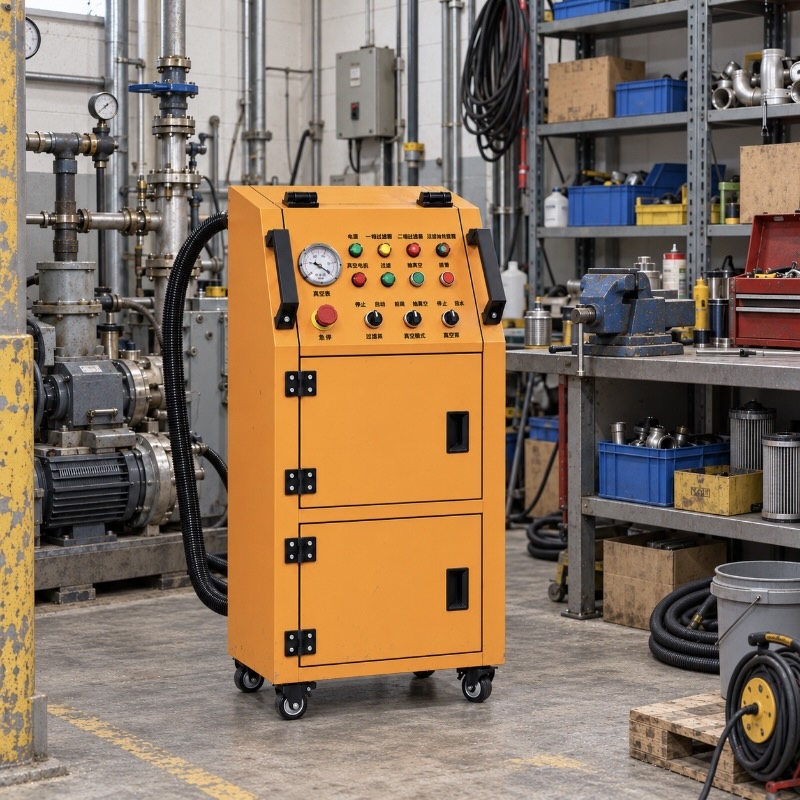

    Workshop Vacuum Filtration Equipment

    This enclosure is developed around the actual filtration equipment, piping, pumps and control layout. Access panels, mounting structures and openings can be coordinated before fabrication to support equipment installation and routine maintenance.

    Applications:Vacuum Filtration Equipment · Industrial Filtration · Fluid Processing · Factory Equipment

    Recommended Materials

    • Carbon Steel

      Carbon Steel

      SPCC or DC01 is suitable for many protected industrial enclosures requiring structural strength and durable powder-coated finishes.

    • Stainless steel 304 and 316

      Stainless Steel

      304 or 316 can be selected where moisture, process fluids or more demanding corrosion conditions need to be considered.

    • Aluminum

      5052 can be considered for selected panels or enclosure designs where lower weight and corrosion resistance are important.



    Read more materials



    Customization Options

    Enclosure Customization Options

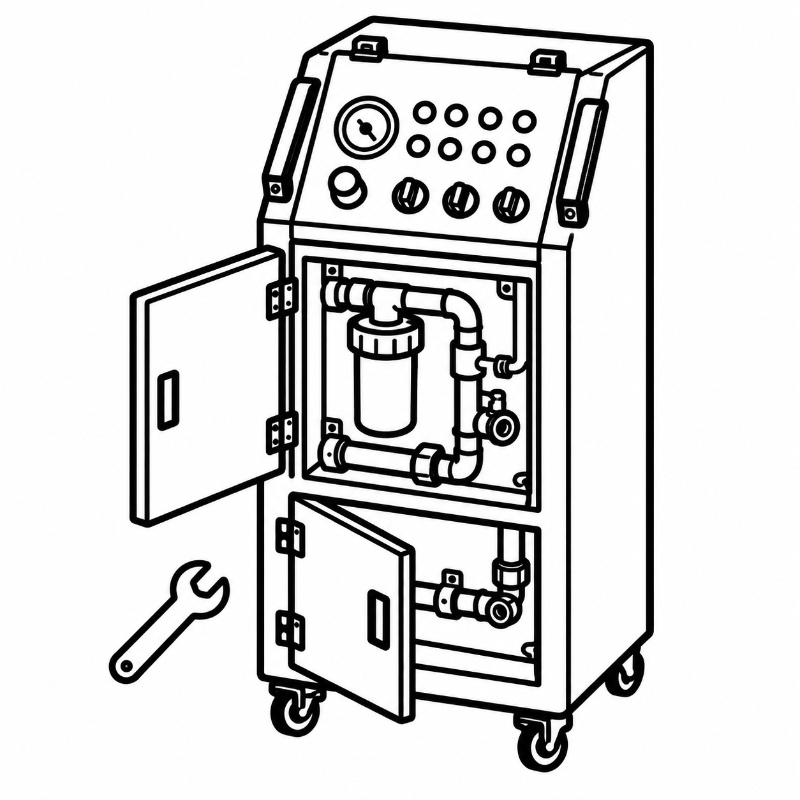

    • Vacuum Filtration Enclosure Equipment Integration

      Equipment Integration

      Internal supports, brackets and panel openings can be customized around filters, pumps, valves and control components.

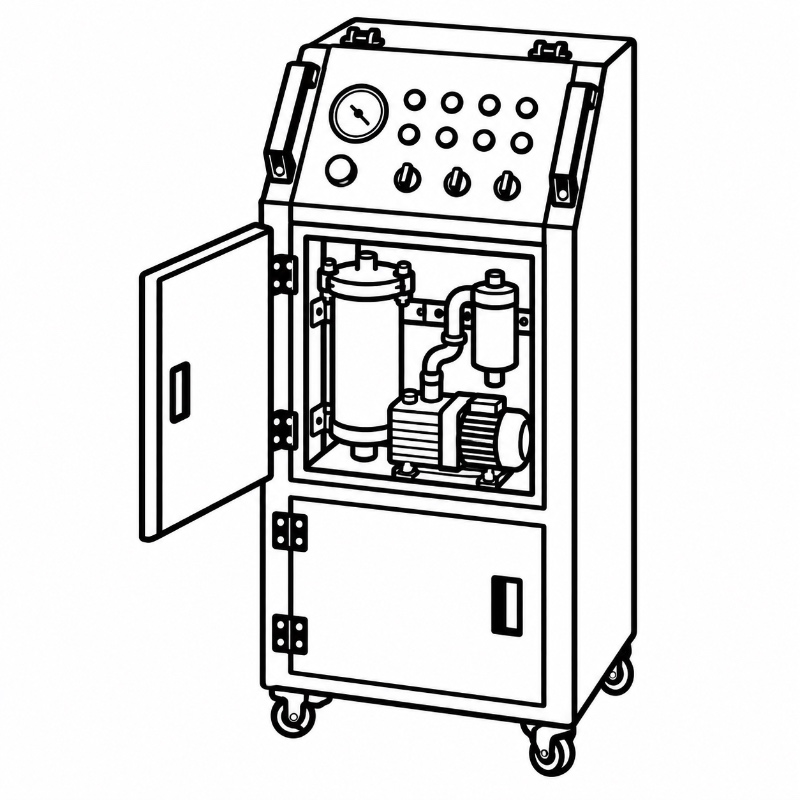

    • Vacuum Filtration Enclosure Piping & Service Access

      Piping & Service Access

      Pipe openings, cable entries, access doors and removable panels can be positioned according to the equipment and maintenance layout.

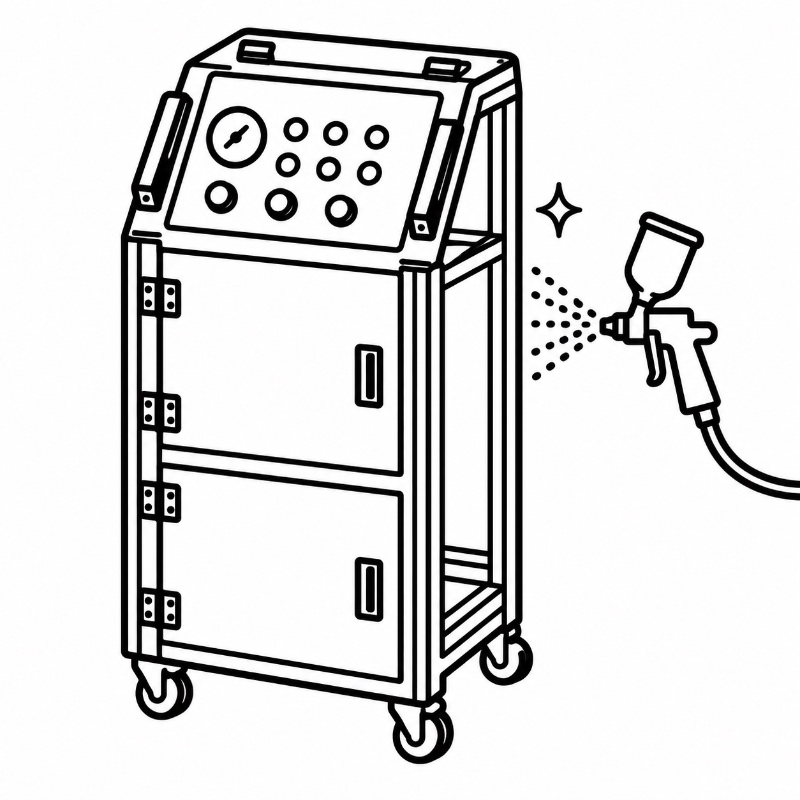

    • Vacuum Filtration Enclosure Frame & Finish

      Frame & Finish

      Frames, bases, feet, casters and surface finishes can be customized according to equipment load and operating conditions.

    Key Design Considerations

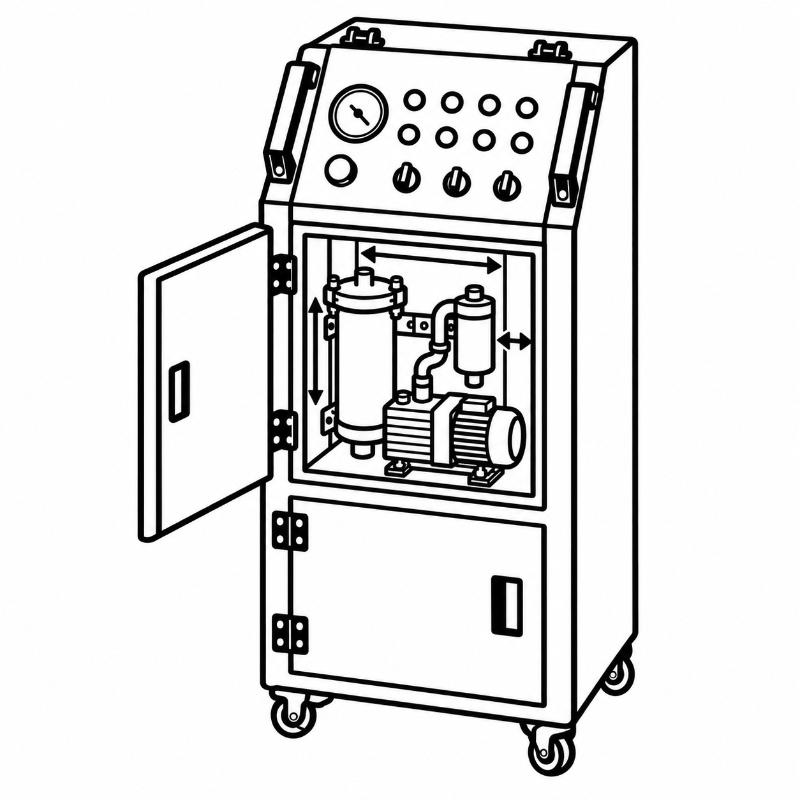

    • Vacuum Filtration Enclosure Equipment Fit

      Equipment Fit

      Enclosure dimensions and internal structures should match the actual filtration components, piping and service clearances.

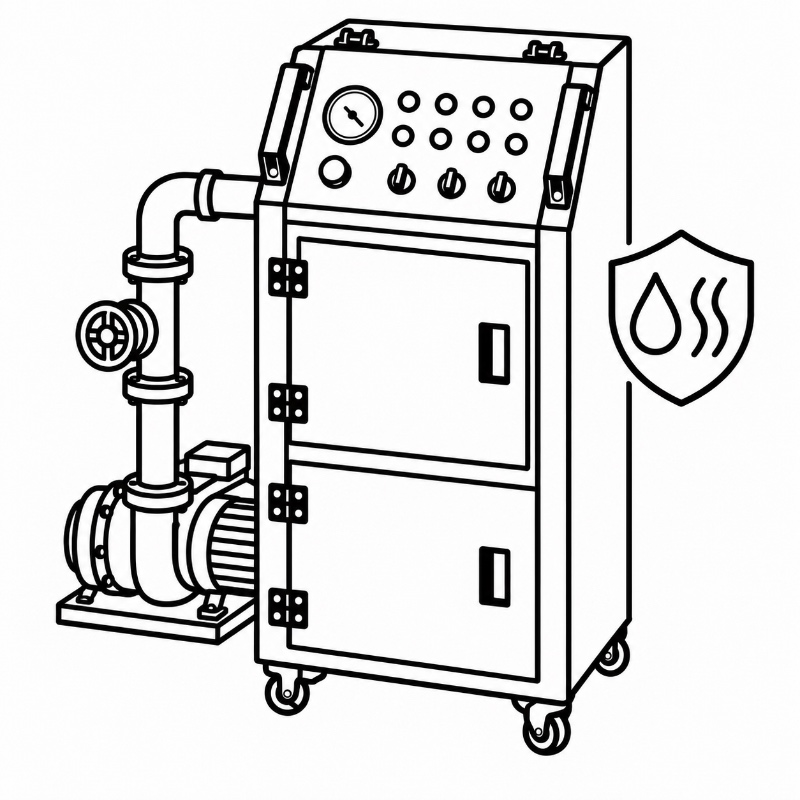

    • Vacuum Filtration Enclosure Process Environment

      Process Environment

      Material and finish should be selected according to moisture, process-fluid exposure and the intended operating environment.

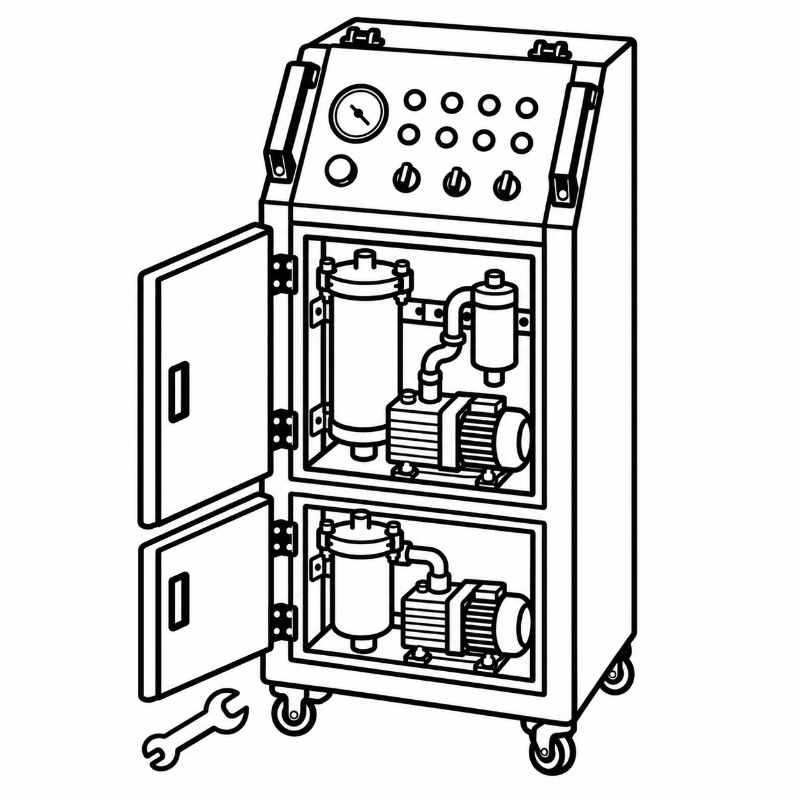

    • Vacuum Filtration Enclosure Maintenance Access

      Maintenance Access

      Doors and removable panels should provide practical access to filters, pumps, valves and control components.

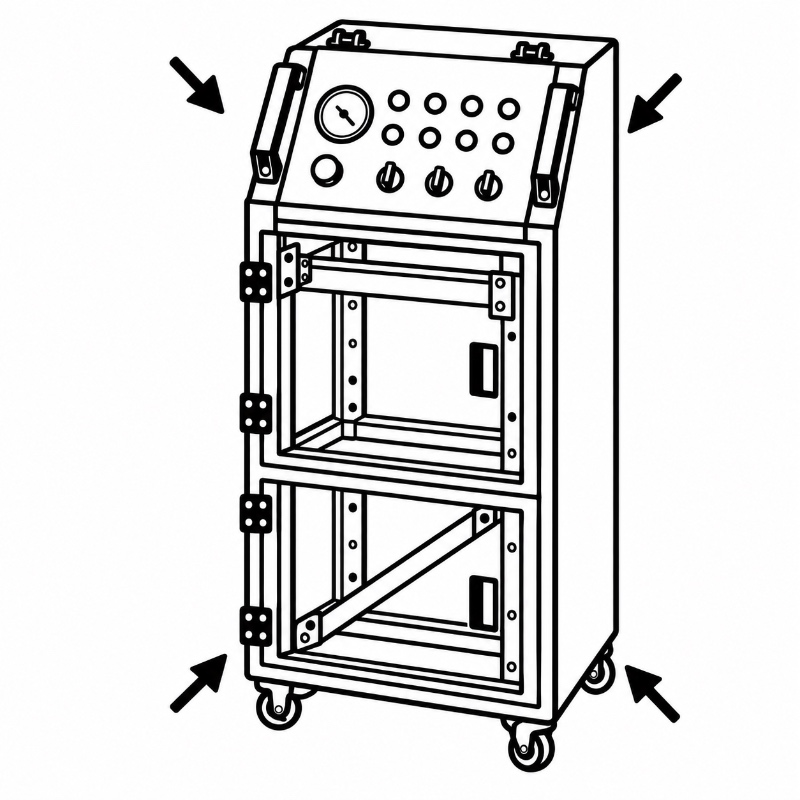

    • Vacuum Filtration Enclosure Structural Rigidity

      Structural Rigidity

      Frames, bases and mounting points should support equipment weight while maintaining enclosure stability.

    Manufacturing Process

    We provide an integrated manufacturing process covering precision sheet metal fabrication, surface finishing, hardware and component installation, mechanical assembly, internal wiring and final inspection.

    Additional operations, including machining, deburring, grinding and tapping, can be incorporated according to the approved drawings and project requirements. Products can be supplied as empty enclosures, partially assembled units or wired cabinet assemblies based on customer-approved BOMs and wiring diagrams.



    OEM Manufacturing Support

    Prototype production and DFM review are available for new projects before volume manufacturing. Learn more on our Capabilities page



    Prototype production and DFM review are available for new projects before volume manufacturing. Learn more on our Capabilities page

    After-Sales Support

    We support quality feedback, replacement parts, repeat production and approved design updates for ongoing OEM projects according to the agreed project scope.

    FAQ


    Can the enclosure be customized around our filtration equipment, pumps and piping layout?

    Yes. Internal supports, pipe openings, access panels, cable entries and mounting features can be customized according to your equipment layout and approved drawings.

    Can stainless steel be used for filtration machine enclosures?

    Yes. Stainless steel 304 and 316 can be selected according to moisture exposure, process conditions and project requirements.

    Can service doors and removable panels be customized?

    Yes. Access doors, removable panels and maintenance openings can be positioned around filters, pumps, valves and other service points.

    Can the enclosure support heavy filtration equipment?

    Yes. Frames, bases and mounting points can be reinforced according to equipment weight and the approved structural design.
