Large Welded Structures with CNC Machining
Dark Gray Smooth-Finished Excavator Bucket
Wheeled Excavator bucket

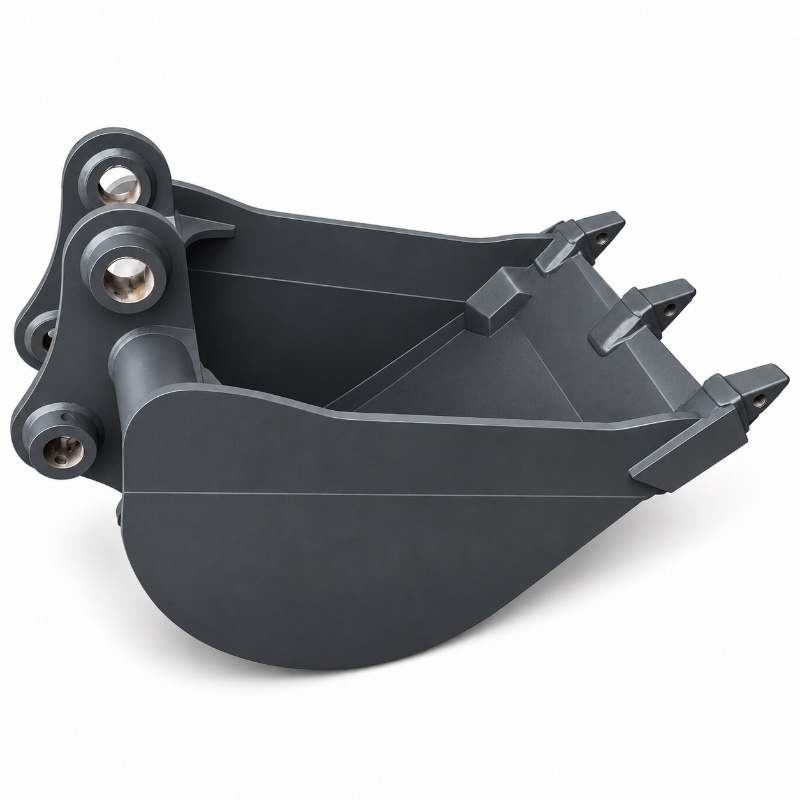

Large Welded Excavator Bucket with CNC Machining

Custom excavator buckets manufactured from heavy steel plate with welded reinforcement and post-weld CNC machining for critical pin and mounting interfaces. Bucket width, pin dimensions, wear components, plate thickness and tooth configuration can be produced according to customer-approved drawings.



  • Material :

    Structural Steel / Wear-Resistant Steel / Project-Specified

  • Common Grade :

    Q355 / NM Series Wear Plate / Project-Specified

  • Thickness :

    According to Drawing

  • Size :

    Custom to Drawing

  • Surface Finish :

    Painting / Project-Specified Finish

  • Manufacturing Process :

    CNC Boring / Milling / Drilling

  • Application :

    Excavators · Earthmoving Equipment · Construction Machinery · Mining Equipment · OEM Attachment Programs

  • Overview

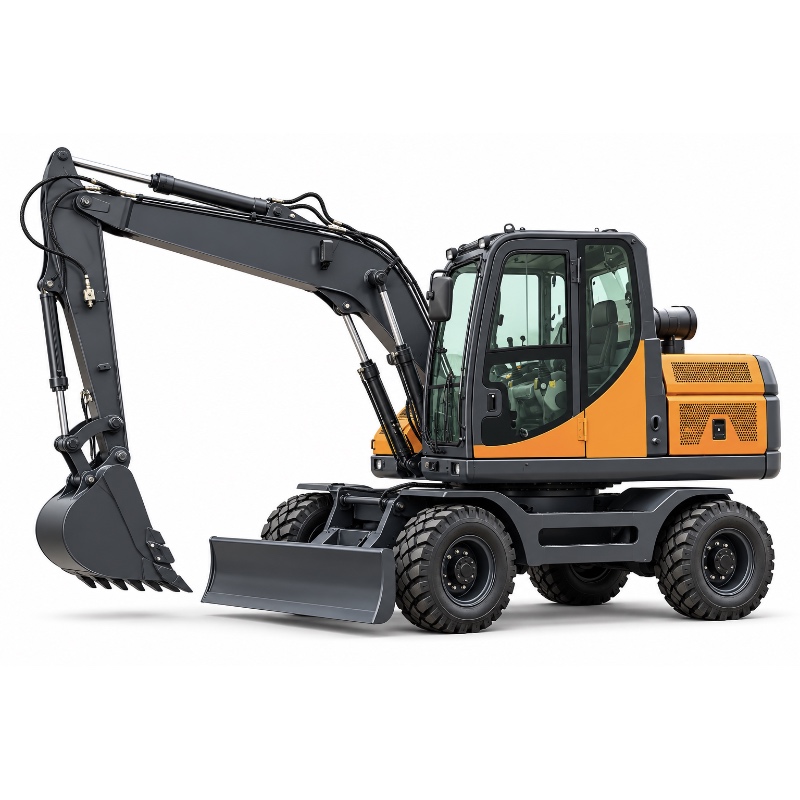

    Wheeled Excavator bucket

    This excavator bucket combines heavy-plate fabrication, welded reinforcement and CNC machining in one manufacturing process.

    The bucket body is fabricated and welded first, while critical pin holes and mounting interfaces can be machined after welding to improve alignment and fit with the excavator linkage. Wear plates, teeth, side reinforcement and connection dimensions can be adjusted according to the approved attachment design.

    This type of project is suitable for customers requiring both large welded fabrication and controlled machining of critical interfaces.
    Applications: Excavators · Earthmoving Equipment · Construction Machinery · Mining Equipment · OEM Attachment Programs

    Recommended Materials

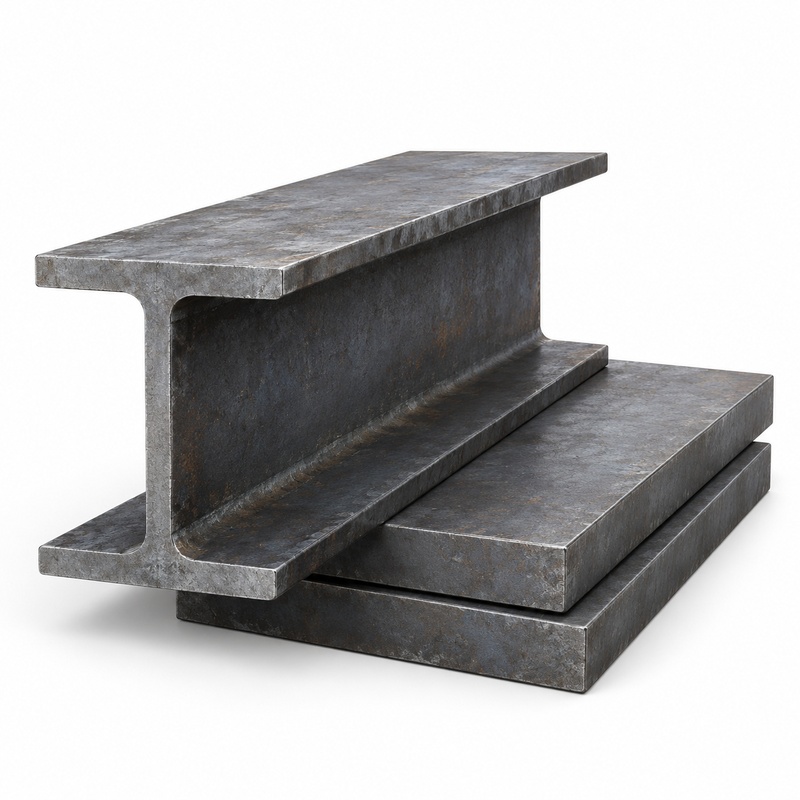

    • Structural Steel

      Structural Steel

      Used for the main bucket body and welded supporting structure.

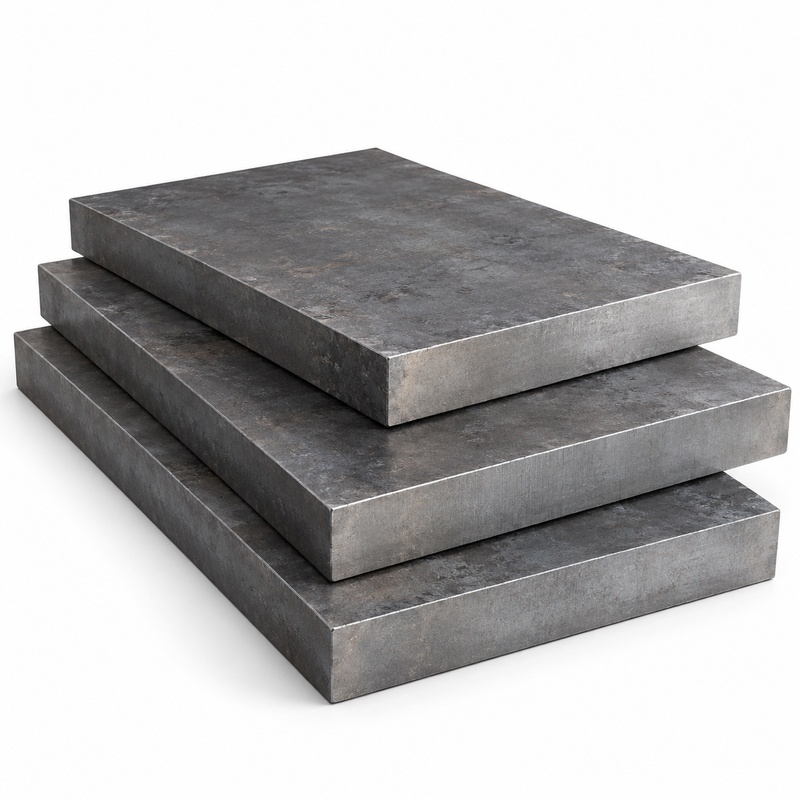

    • Wear-Resistant Steel

      Wear-Resistant Steel

      Used for cutting edges, wear areas and selected reinforcement where required by the approved design.

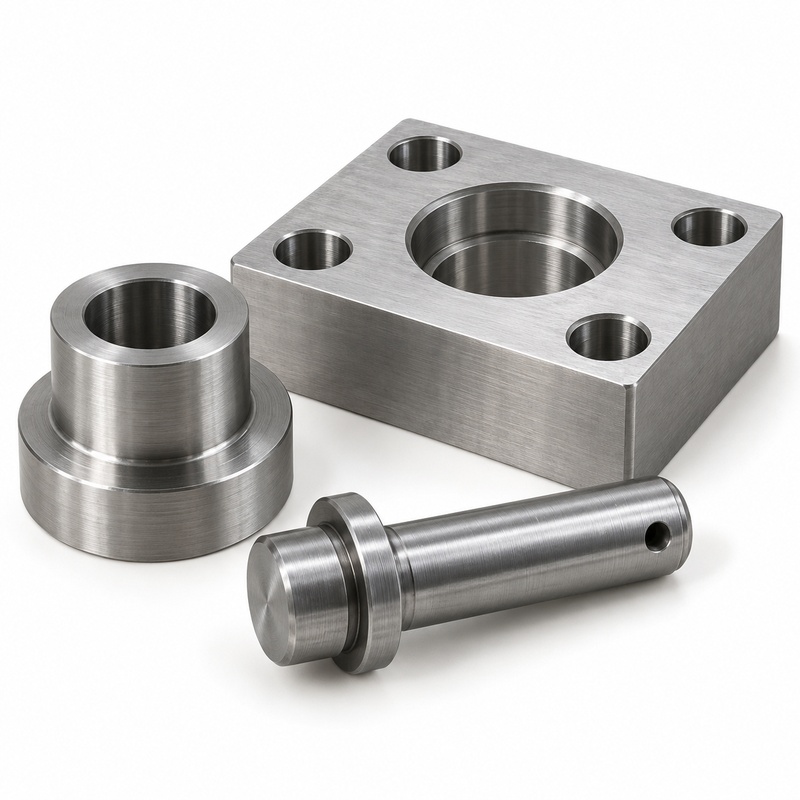

    • Machined Steel Components

      Machined Steel Components

      Used for pin bosses, bushings and other critical connection areas where machining is required.



    Read more materials

    Customization Options

    CNC Customization Options

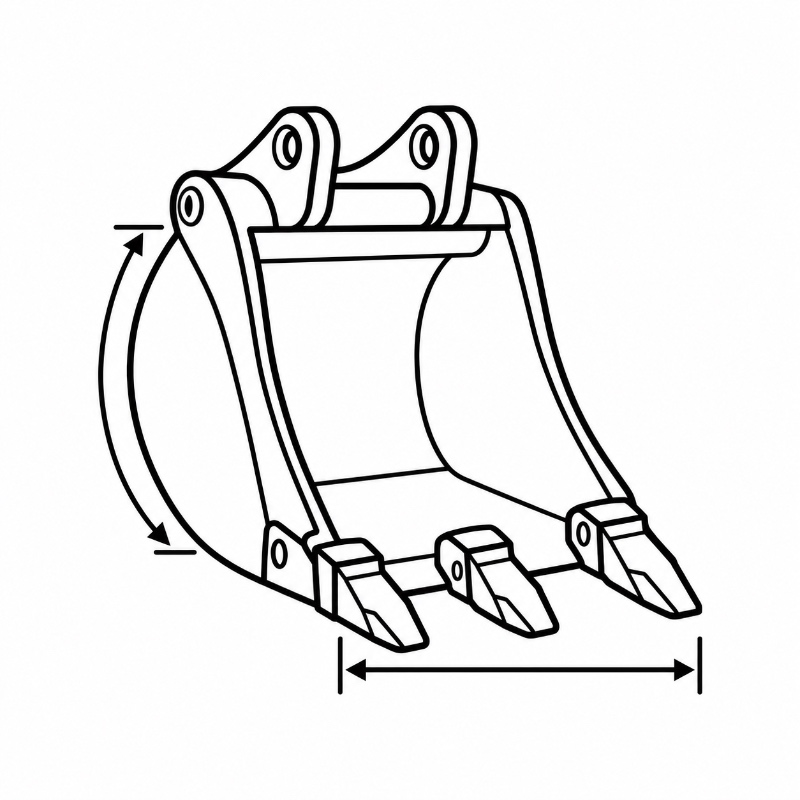

    • Bucket Geometry

      Bucket Geometry

      Width, depth, capacity and side profile can follow customer drawings.

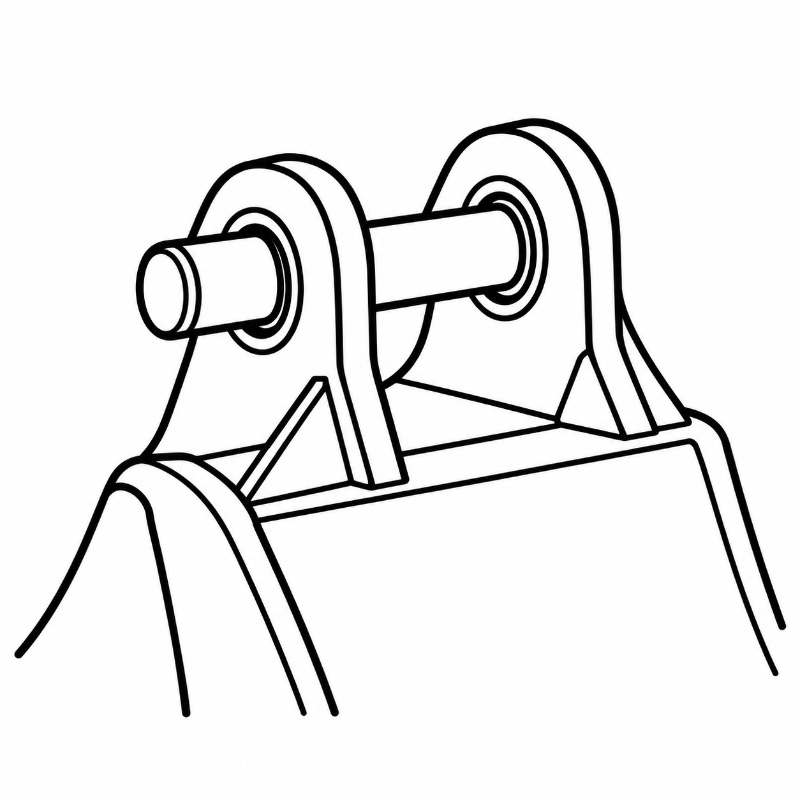

    • Pin & Mounting Interfaces

      Pin & Mounting Interfaces

      Pin diameter, pin-center distance, boss dimensions and linkage interfaces can be customized.

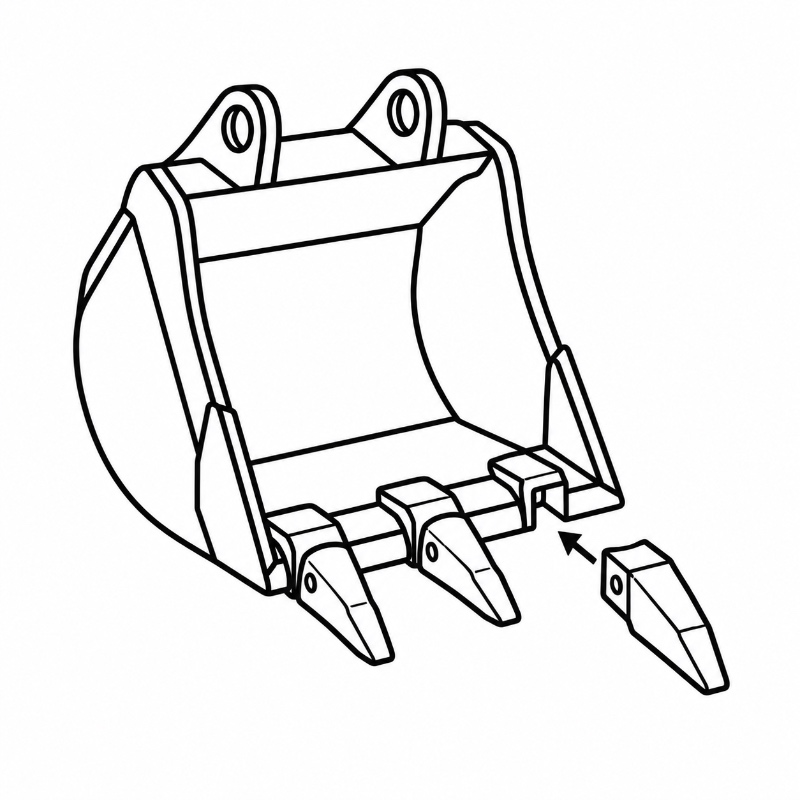

    • Wear & Reinforcement Design

      Wear & Reinforcement Design

      Wear plates, cutting edges, teeth, plate thickness and reinforcement can follow the approved design.

    Key Design Considerations

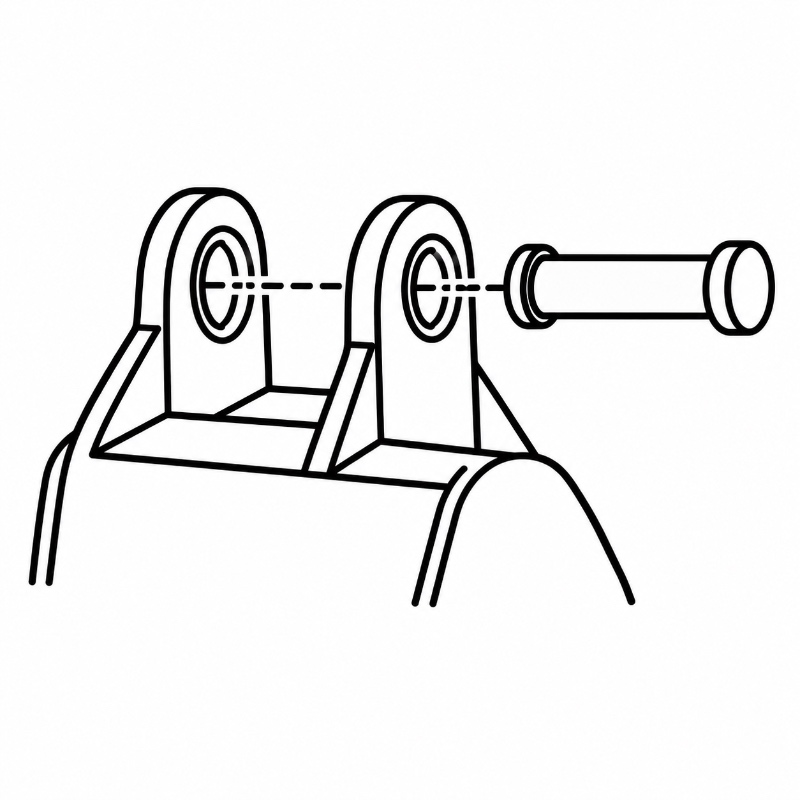

    • Pin-Hole Alignment

      Pin-Hole Alignment

      Critical mounting holes should remain aligned after welding and machining.

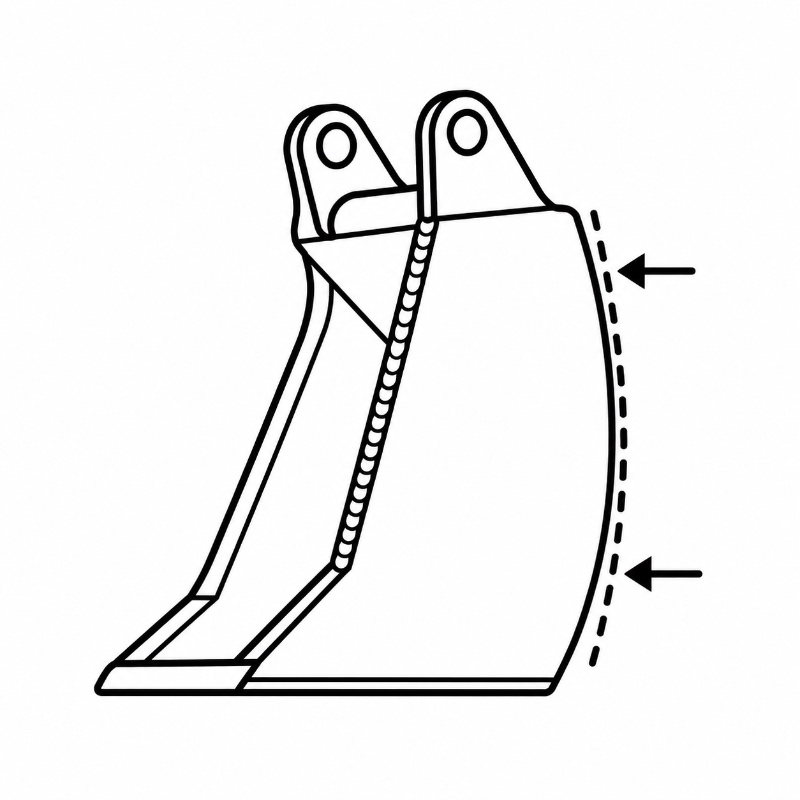

    • Weld Distortion

      Weld Distortion

      Large welded parts require controlled fit-up and welding sequence.

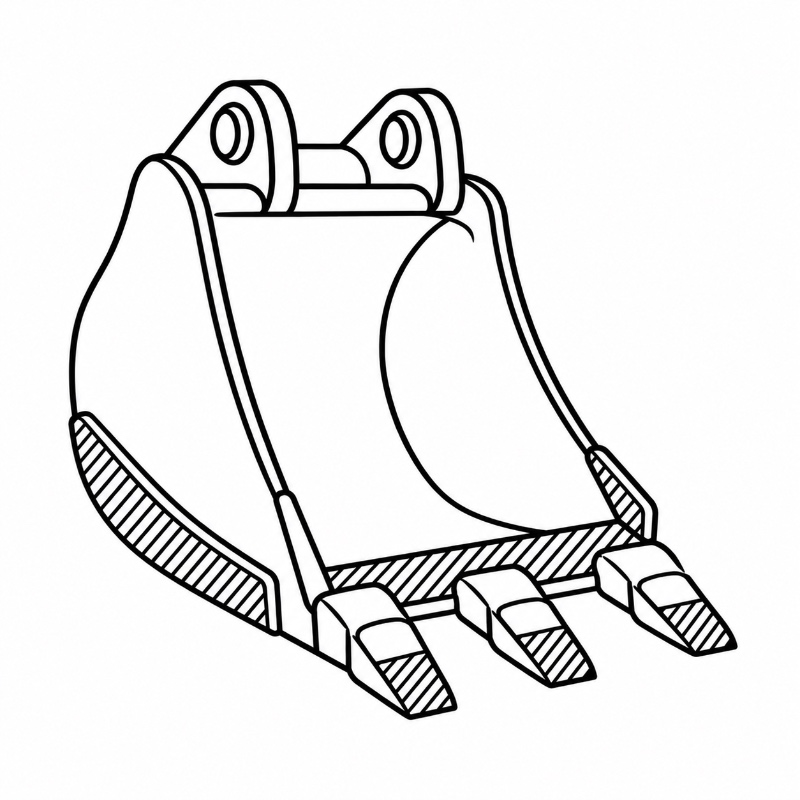

    • Wear Areas

      Wear Areas

      High-wear zones need suitable material and reinforcement.

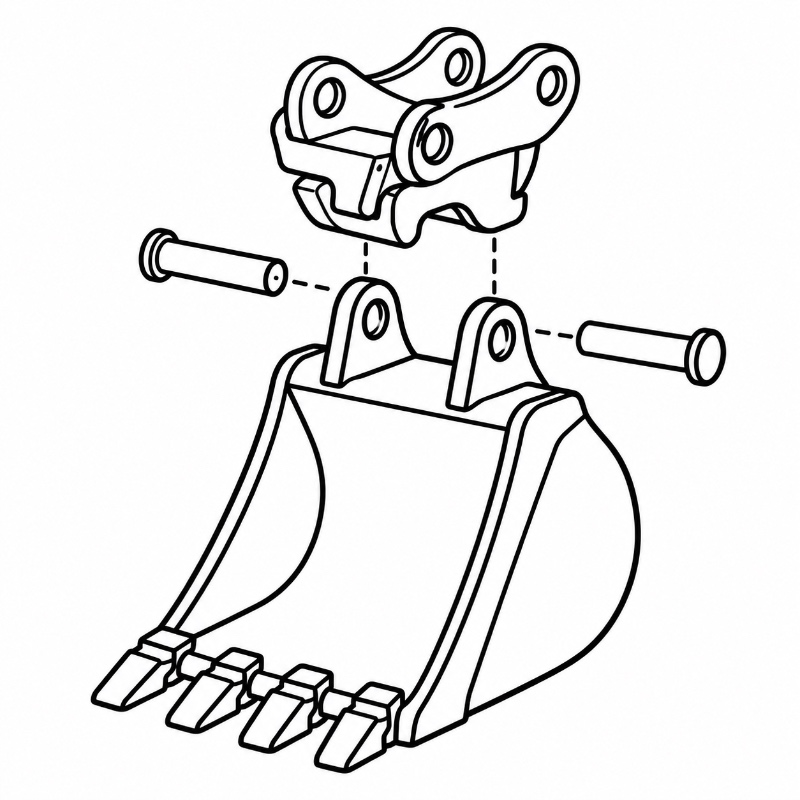

    • Attachment Interface

      Attachment Interface

      Pin and linkage dimensions must match the approved excavator connection.

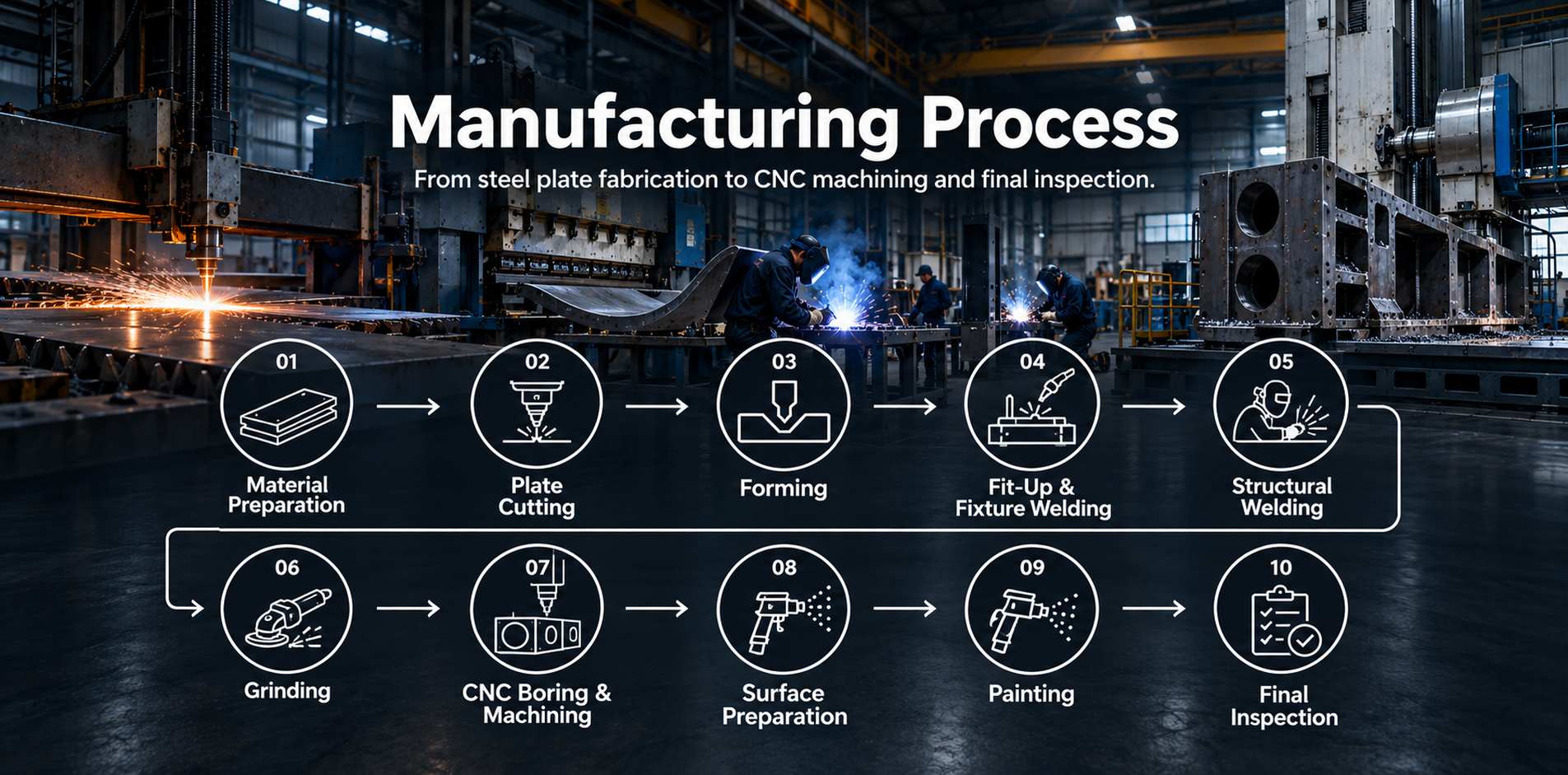

    Manufacturing Process



    Large welded components are fabricated first, with critical pin holes and mounting interfaces machined after welding where required by the drawing.

    Manufacturing Process





    OEM Manufacturing Support

    Prototype production and DFM review are available for new projects before volume manufacturing. Learn more on our Capabilities page

    Prototype production and DFM review are available for new projects before volume manufacturing. Learn more on our Capabilities page

    After-Sales Support

    We support quality feedback, replacement parts, repeat production and approved design updates for ongoing OEM attachment programs.

    FAQ

    Can you manufacture excavator buckets according to our drawings?

    Yes. Bucket dimensions, pin interfaces, plate thickness and reinforcement can follow customer-approved drawings.

    Can the pin holes be machined after welding?

    Yes. Critical pin holes and mounting interfaces can be CNC bored or machined after welding where required.

    Can wear-resistant steel be used?

    Yes. Project-specified wear-resistant steel can be used for cutting edges and high-wear areas.

    Can teeth and adapters be installed?

    Yes. Customer-specified tooth systems and related hardware can be integrated according to the agreed project scope.
