Precision CNC Machined Manifold Block

Precision CNC machined manifold blocks produced with multiple drilled, bored and threaded ports for hydraulic, pneumatic or fluid-control assemblies. Port layout, thread type, internal passages, mounting holes and surface treatment can be manufactured according to customer-approved drawings.

Material :
Carbon Steel / Alloy Steel / Stainless Steel / Aluminum
Common Grade :
45 Steel / 40Cr / 304 / 6061 / Project-Specified
Thickness :
According to Drawing
Size :
Custom to Drawing
Surface Finish :
Machined / Black Oxide / Plating / Anodizing / Project-Specified
Manufacturing Process :
CNC Milling / Drilling / Boring / Reaming / Tapping
Application :
Hydraulic Systems · Pneumatic Systems · Lubrication Systems · Industrial Machinery · Automation Equipment · Test & Control Equipment

Overview

This manifold block is machined from solid material with multiple ports, holes and internal passage features produced according to the approved drawing.

The manufacturing process can combine CNC milling, drilling, boring, reaming and tapping to control port positions, mounting interfaces and threaded connections.

For fluid-control applications, internal deburring and cleaning are especially important because chips or burrs left inside cross-drilled passages can affect assembly and system operation.
Applications: Hydraulic Systems · Pneumatic Systems · Lubrication Systems · Industrial Machinery · Automation Equipment ·Test & Control Equipment
Recommended Materials
- Carbon Steel

  Suitable for many industrial manifold and hydraulic applications.
- Alloy Steel

  Used where higher strength or project-specific mechanical properties are required.
- Stainless Steel

  Suitable for corrosion-sensitive or selected fluid-control environments.
- Aluminum

  Suitable for lightweight pneumatic or hydraulic manifold applications where approved.
Read more materials

Customization Options
CNC Customization Options

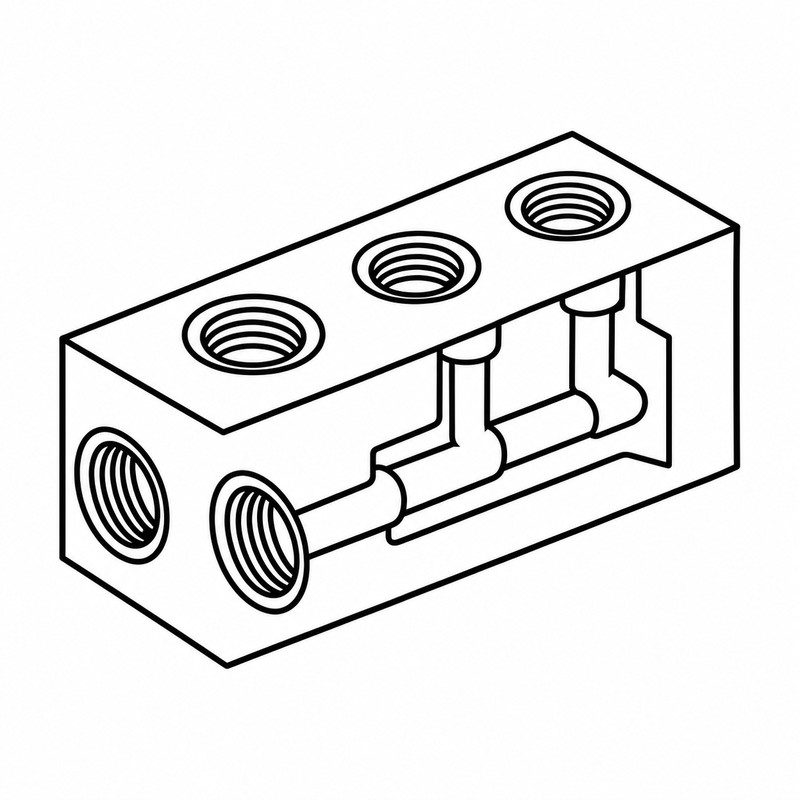

Ports & Internal Passages

Port quantity, location, size and internal flow paths can follow the approved system design.

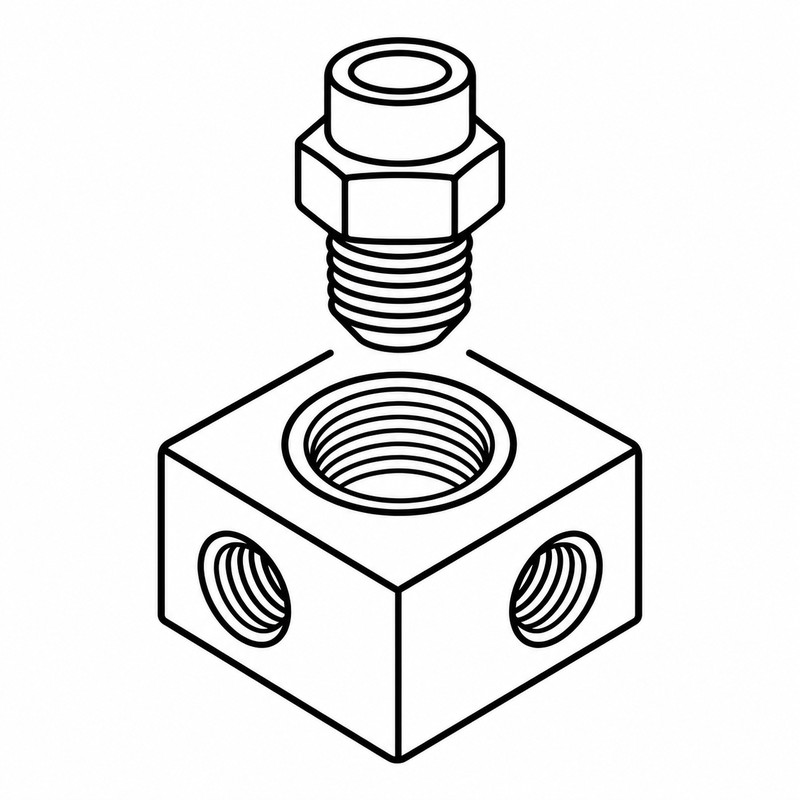

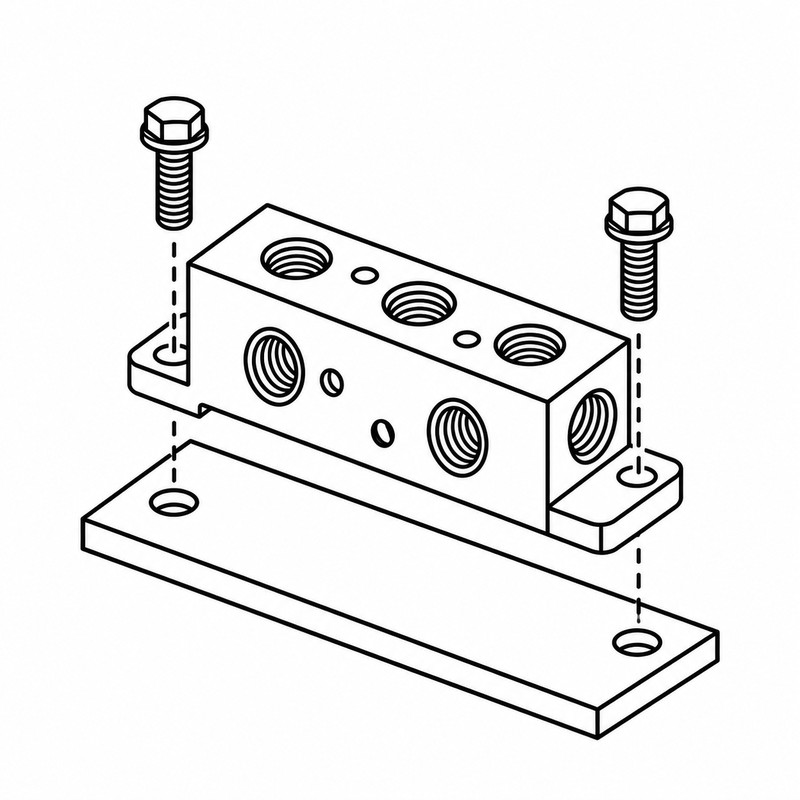

Thread Specifications

Metric, BSP, NPT and project-specific threads can be machined.

Mounting Interfaces

Bolt holes, locating features and machined mounting faces can be customized.
Key Design Considerations

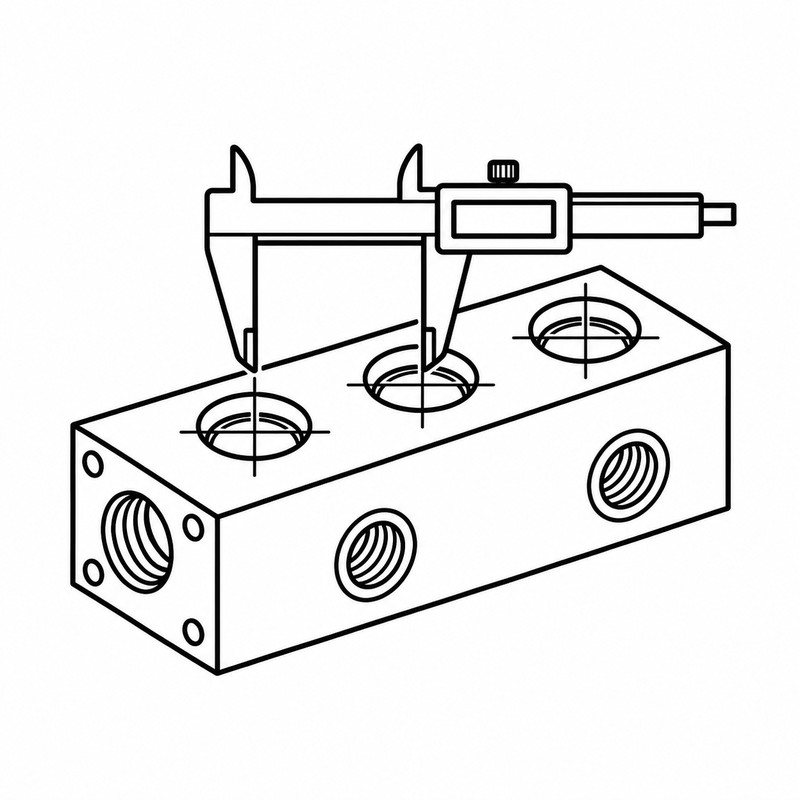

Port Position Accuracy

Hole and thread locations should match connected components.

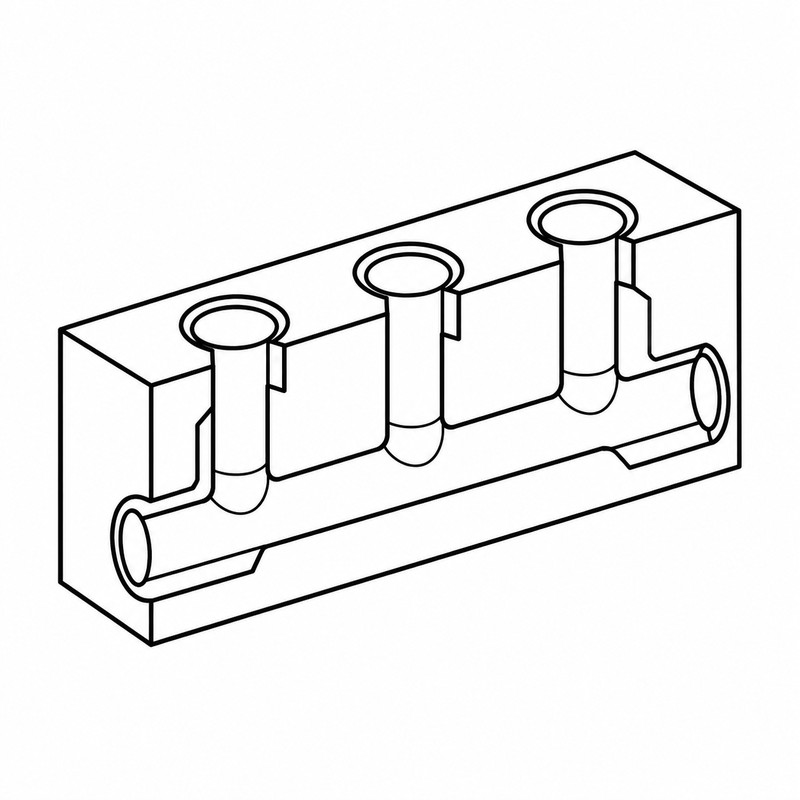

Internal Passage Layout

Cross holes must follow the approved fluid-routing design.

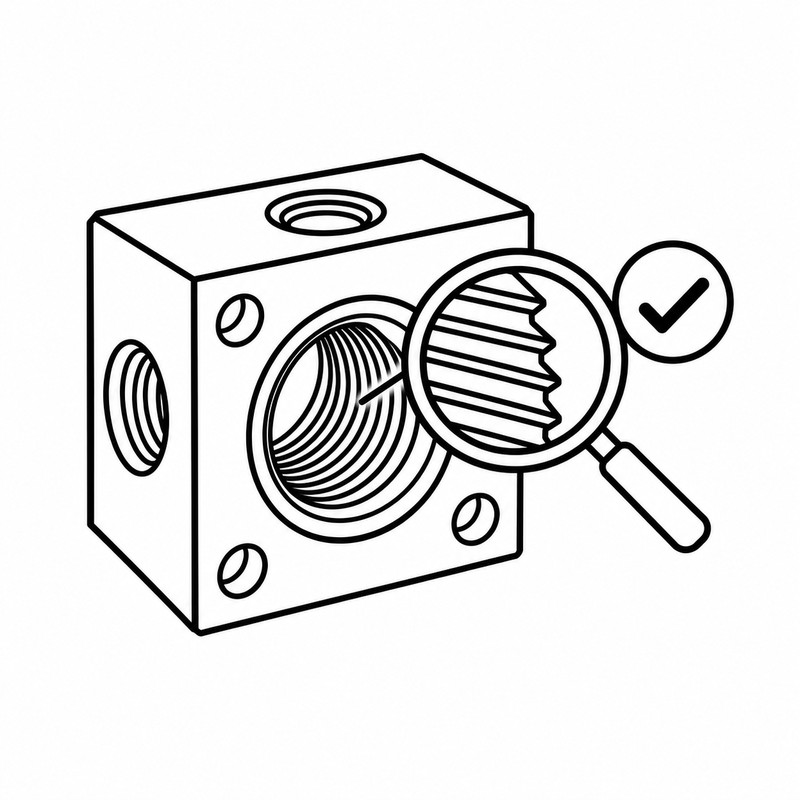

Thread Quality

Threads should suit the specified fittings and sealing method.

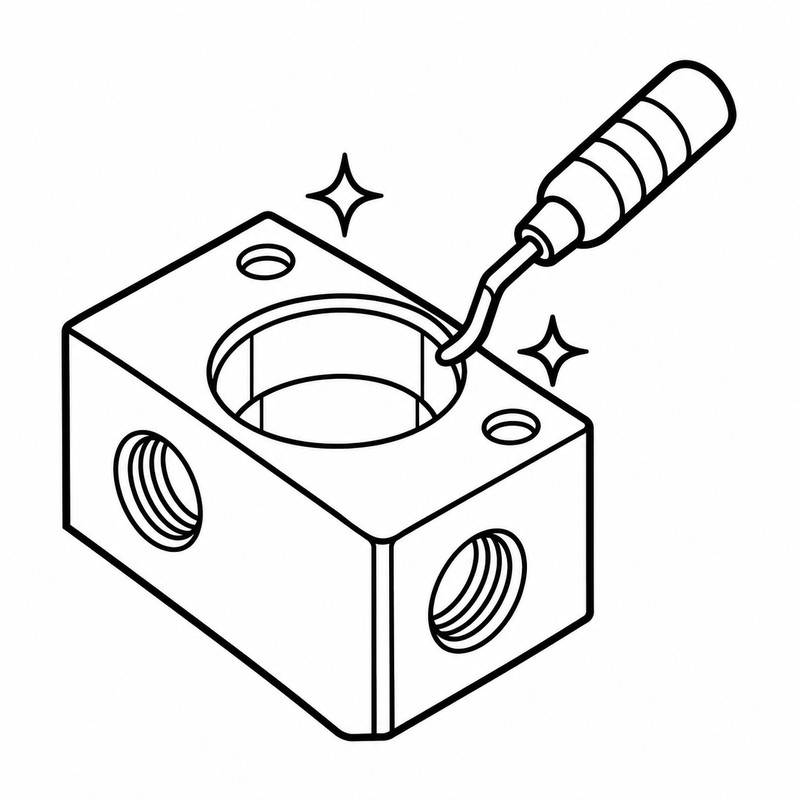

Deburring & Cleanliness

Internal passages should be free from loose burrs and machining chips.
Manufacturing Process

Pressure or leak testing can be coordinated when specified and agreed before production.

OEM Manufacturing Support

Prototype production and DFM review are available for new projects before volume manufacturing. Learn more on our Capabilities page

After-Sales Support

We support quality feedback, replacement parts, repeat production and approved design updates for ongoing OEM attachment programs.

FAQ

Can you machine custom port and thread layouts?

Yes. Port locations, thread types and hole patterns can follow customer-approved drawings.

Can you machine BSP, NPT and metric threads?

Yes, where specified on the drawing and suitable tooling is available.

How are internal burrs controlled?

Cross-drilled passages are deburred and cleaned according to the agreed manufacturing requirements.

Can you provide inspection reports?

Yes. Dimensional or critical-feature inspection records can be provided according to project requirements.
