SPCC vs SGCC vs Q235: Which Steel Is Right for Your Project?

SPCC, SGCC and Q235 often appear in RFQs for metal enclosures, cabinets, brackets, frames and welded structures. They are all used in metal fabrication, but they are not direct equivalents. In practice, they are often selected for different parts of the same product. A machine, for example, may use:• Q235 for the welded frame• SPCC for the outer panels• Galvanized sheet for selected internal partsThe right choice depends less on the material name itself and more on what the part actually needs to do. SPCC and SGCC are commonly referenced under JIS material designations, while Q235 is a Chinese structural carbon-steel designation. For manufacturing, the main question is how each material fits the part, process and operating environment. 1. What Is SPCC? SPCC is a cold-rolled steel sheet commonly used for formed sheet metal parts.It is often selected for:  • Electrical cabinets• Machine enclosures• Control boxes• Covers• Front and side panels• Brackets• Appliance housings Its relatively smooth surface works well for products that will later be powder coated or painted.For an indoor equipment enclosure, SPCC is often a practical starting point because it can be cut, bent, welded and finished using standard sheet metal processes. The limitation is corrosion resistance. Bare SPCC should not be treated as an outdoor-ready material. If the product will be exposed to moisture, rain or a corrosive environment, the surface-protection system needs to be defined separately.   2. What Is SGCC? SGCC is a zinc-coated steel sheet.The main difference is that the sheet already has a metallic zinc coating before fabrication. It is commonly used for:• Internal cabinet panels• Mounting plates• Electrical enclosure parts• Ventilation components• Equipment panels• Selected galvanized sheet metal parts The existing zinc coating can provide additional corrosion protection compared with bare cold-rolled steel.However, fabrication can interrupt that protection. Cut edges, drilled holes and especially welded areas may expose or damage the original coating.   Depending on the application, those areas may need additional treatment. For this reason, specifying SGCC does not automatically make a finished enclosure suitable for every outdoor environment. The final result still depends on the complete design, fabrication method and exposure conditions.   3. What Is Q235? Q235 is commonly used for structural carbon-steel fabrication.In custom manufacturing, we more often see it specified for:• Equipment frames• Machine bases• Welded structures• Structural brackets• Support plates• Stair components• Large fabricated parts• Outdoor support structures Q235 is also available in plate or sheet form, but its typical role is different from SPCC. For a large machine frame, the main requirement may be rigidity, welding and structural support. For the outer cover of the same machine, forming and appearance may matter more. That is why one project may use both Q235 and SPCC.   SPCC vs SGCC vs Q235 at a Glance     SPCC SGCC Q235 Common use in fabrication Formed sheet metal parts Zinc-coated sheet metal parts Welded structural parts Surface condition Cold-rolled bare surface Zinc-coated surface Bare structural steel Typical products Enclosures, covers, panels Mounting panels, coated enclosures Frames, bases, supports Forming Well suited to common sheet metal forming Suitable for many formed parts Depends on thickness and structure Welding Common Zinc coating around welds needs attention Common in structural fabrication Corrosion protection Requires suitable finish Zinc coating provides initial protection Requires suitable finish outdoors Typical finishes Powder coating / painting Existing zinc coating / added finish Painting / powder coating / galvanizing   This is a practical manufacturing comparison rather than a material-standard equivalency chart. If a drawing specifies a particular grade or standard, production should follow the approved requirement.   4. Which One Should You Start With? There is no single answer for every sheet metal project, but these are useful starting points. Indoor Formed Enclosure or Cabinet SPCC is often a practical choice when the part will be bent, welded and then powder coated or painted.Typical examples:• PLC enclosure• Machine cover• Control cabinet• Appliance housing   Pre-Galvanized Sheet Metal Part SGCC may be suitable where a zinc-coated sheet is required before fabrication.Typical examples:• Internal mounting panels• Electrical cabinet parts• Equipment panels• Selected coated sheet metal components If the part will be welded or exposed outdoors, the cut and welded areas still need to be considered.   Welded Frame, Base or Structural Part Q235 is commonly considered for:• Equipment frames• Machine bases• Structural supports• Larger welded assemblies Here the main concerns are usually structure, welding, geometry and final corrosion protection.   One Product with Different Functions Using different materials within one product is often more practical than forcing one material to do everything.For example:Q235 welded frameSPCC outer panelsGalvanized internal mounting plateEach material is doing a different job.   5. Do Not Choose by Thickness Alone A thicker sheet does not automatically make a product better.For a cabinet, rigidity may also come from:• Bends• Reinforcement• Folded edges• Welded supports• Frame design Increasing thickness adds weight and material cost. If the structure is the real issue, changing the design may be more effective than simply increasing sheet thickness. Material grade, thickness and structure should be reviewed together.   6. Welding and Surface Finish Need to Be Considered Together Material selection changes the way welding and finishing are handled. SPCC and Q235 are commonly used in welded fabrication. SGCC needs more attention around welded areas because the zinc coating can be affected by heat. For a heavily welded outdoor structure, there is also an important process question: Should the project use pre-galvanized sheet?orShould the structure be fabricated first and then hot-dip galvanized?These are different manufacturing routes. The right choice depends on:• Part size• Weld locations• Outdoor exposure• Appearance• Dimensional requirements• Final coating system The same applies to visible products.An internal machine frame and a customer-facing enclosure may both use carbon steel, but the finish requirements can be very different.   7. Can SPCC, SGCC and Q235 Be Substituted? They should not be substituted by name alone. A material change may affect:• Forming• Welding• Surface condition• Corrosion protection• Applicable material standard• Final appearance• Structural performance If the customer drawing specifies a particular grade, any alternative should be reviewed and approved before production. Availability or cost may sometimes lead a supplier to suggest another material. That does not automatically make it an acceptable replacement. For OEM projects, material changes should never become an informal shop-floor decision.The approved drawing and project requirements should remain the reference.   Practical Example 1: Industrial Equipment Consider a large industrial machine with a welded base and removable sheet metal panels. A practical material arrangement could be: Machine FrameQ235 structural steelUsed for the welded base and main support structure.Outer PanelsSPCCUsed for formed doors, covers and removable panels.Internal Mounting PlateSPCC or project-specified coated steelUsed for mounting controls, hardware or electrical components.FinishPowder coating Used where a finished appearance and surface protection are required. This is a good example of why asking: “Which steel is best?”is often the wrong question. The better question is:“Which steel is best for this part of the product?”   Practical Example 2: Solar Mounting Structure A photovoltaic mounting project has a different set of requirements. Depending on the approved design and installation environment, the project may use:• Q235 or Q355 structural steel• Hot-dip galvanized steel• Zn-Al-Mg coated steel• Project-specified aluminum The decision may depend on:• Structural load• Outdoor exposure• Connection details• Corrosion protection• Installation method• Project specification For this type of product, the coating system is just as important as the base material. A structural steel component with suitable post-fabrication protection is not the same manufacturing route as a component made from pre-coated sheet.   What Should Be Shown on the Drawing? If the material has already been approved, show:• Material grade• Thickness• Surface finish For example:SPCC, 1.5 mm, powder coatedQ235, 5 mm, hot-dip galvanizedIf the material has not been finalized, provide the application and operating environment. For example:Indoor powder-coated equipment cabinetOutdoor welded support structureInternal galvanized mounting panelThat gives the manufacturer enough information to review the available options.Avoid vague notes such as:SteelMild steelGalvanized metalwhen the material has already been defined.   Need Help Reviewing Material for Your Project? Send us your drawing, material requirement, thickness, finish and application information.YT Manufacturing works with carbon and coated steels, stainless steel, aluminum and other project-specified materials for sheet metal fabrication, welded structures, CNC machining and assembly.

Read More

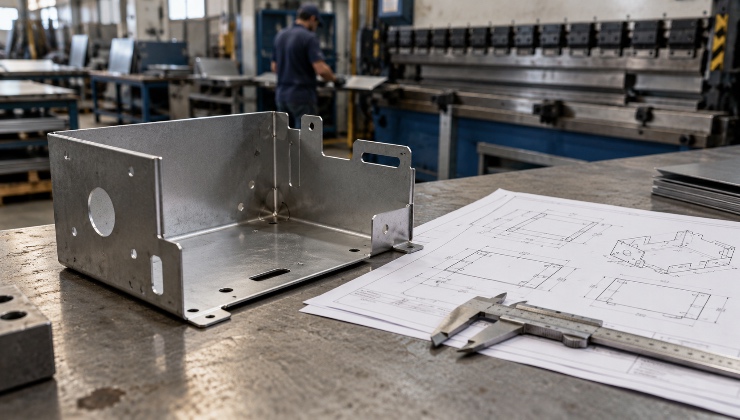

10 Common Sheet Metal Design Mistakes That Increase Manufacturing Cost

Two sheet metal parts with similar size and material can have very different manufacturing costs.The difference is often in the drawing: tight tolerances, difficult bends, unnecessary welding, poor tool access or assembly details that add extra operations.Most of these issues can be found before production starts.At YT Manufacturing, we review drawings for enclosures, cabinets, machine frames, CNC machined parts and assembled products. Below are ten design issues we regularly check before quoting or prototyping a new project. 1. Using Tight Tolerances Everywhere Not every dimension needs the same tolerance.A mounting interface may need close control, while the overall size of a cover or non-critical panel may not. When tight tolerances are applied everywhere, the manufacturer may need more time for machining, adjustment and inspection. This becomes more noticeable on welded structures, where heat can affect flatness and alignment.A practical drawing should make clear which dimensions really affect:• Assembly• Component fit• Alignment• Moving parts• Sealing• Machined interfacesUse tighter tolerances where they matter and normal fabrication tolerances elsewhere.   2. Placing Holes Too Close to a Bend Holes, slots and cutouts can deform when they are too close to a bend line.Common problems include:• Oval holes• Stretched slots• Distorted edges• Poor screw alignment• Position changes after bending Sometimes the part can still be made, but it may require an extra operation after forming. Leave enough clearance between bends and nearby features where the design allows it. The required distance depends on material, thickness, bend radius, hole size and bend angle. For parts with important mounting holes near bends, this should be checked before the sample is made.   3. Using an Impractical Bend Radius A bend radius should match the material and sheet thickness. A radius that is too small can increase the risk of cracking, surface damage or unstable forming, especially with thicker sheet or harder materials. An unnecessarily large radius can create fit or appearance problems. If the radius is not functionally critical, it is better to review it together with:• Material grade• Thickness• Bend angle• Part geometry• Visible appearance This gives more flexibility during forming without changing the function of the part.   4. Ignoring Bend and Tool Access A shape may look simple in CAD but still be difficult to form on a press brake. Deep flanges, closely spaced bends and enclosed shapes can interfere with the tooling or with previously formed sections. Typical examples include:• Narrow U-shaped channels• Deep boxes• Return flanges• Multiple bends close together• Bends that become blocked after earlier forming steps The issue is often not one bend by itself, but whether the full bend sequence is practical. A small change to flange length, bend order or part layout can sometimes avoid special tooling or extra welding.   5. Over-Specifying Welding and Weld Finishing More welding does not always improve the product. Long continuous welds can add heat, increase distortion and create more grinding work.The same applies to weld appearance. A visible corner may need to be smooth after finishing, while an internal structural weld may only need to meet the approved functional requirement. On the drawing, it helps to distinguish between:• Structural welds• Visible cosmetic welds• Hidden internal welds This avoids unnecessary grinding and makes the expected finish easier to understand.   6. Using More Separate Parts Than Necessary Every extra part adds another step.It may need to be:• Cut• Handled• Positioned• Welded• Fastened• Inspected In some designs, several small brackets or welded plates can be replaced by one formed sheet metal part. Tabs, bends and formed features can sometimes reduce part count without changing the product function. This does not mean every assembly should be redesigned into one piece. But when several simple parts only exist to create one basic shape, it is worth checking whether the structure can be simplified. Fewer parts usually mean easier assembly and fewer opportunities for dimensional variation.   7. Forgetting Assembly and Maintenance Access A fastener may fit in the CAD model but still be difficult to install.The same problem can happen with welding or maintenance. For example:• A nut is too close to a wall for a tool to reach• A mounting screw is blocked by another component• A weld sits inside a narrow closed section• A panel cannot be removed without taking apart half the product These issues are common in:• Electrical cabinets• Self-service kiosks• Machine enclosures• Automation equipment• Multi-part assemblies When reviewing the design, check the actual assembly sequence. Can the tool reach the fastener? Can the component be removed later? Will one installed part block another? A small amount of extra access can save a lot of assembly time.   8. Leaving Surface Finish Until the End Surface finishing should be considered before the metal design is finalized. Powder coating, anodizing, galvanizing and other finishes can affect:• Hole size• Threads• Tight-fitting features• Electrical contact areas• Masking• Visible appearance For example, coating buildup around a close-fitting feature may make assembly difficult. Threads or contact surfaces may need to remain free from coating. For visible stainless steel or aluminum parts, brushing direction and handling requirements may also matter before fabrication begins. Where needed, show the following on the drawing:• Finish type• Color• Visible surfaces• Masking areas• Areas to remain uncoated• Brushing direction   9. Choosing Material Without Considering the Application The same thickness does not mean the same performance. Material choice should consider:• Where the product will be used• How it will be bent• Whether it will be welded• Whether corrosion resistance matters• What finish is required• Whether weight is important If the grade has already been approved, specify it clearly on the drawing. If the material is still open, describe the application and environment instead of writing only “steel” or “aluminum.” That gives the manufacturer enough context to understand what the material needs to do.   10. Sending Inconsistent Drawing Revisions A common problem is receiving a PDF, STEP file and BOM from different revisions. One file may show the old hole pattern while another contains the latest version.Before quotation or production, check that: • The 2D drawing and 3D model match• The BOM uses the same revision• Material and finish information are current• Previous versions are clearly replaced For repeat production, any engineering change from the previous order should be marked clearly.This avoids quoting or producing from an outdated file.   A Note on Large Welded Frames Large welded structures need a different approach from small sheet metal parts. Welding can affect flatness and alignment, while some mounting surfaces or hole patterns may need machining after fabrication. If a frame includes critical interfaces, mark them clearly on the drawing. Typical examples include:• Mounting surfaces• Datum points• Critical hole patterns• Machined interfaces This allows welding and post-weld machining to be planned as one manufacturing sequence. For a large equipment frame, controlling a few important mounting surfaces is usually more practical than applying machining-level tolerances to the entire welded structure.   When Is a DFM Review Useful? A simple laser-cut plate may not need much discussion. DFM becomes more useful when a project includes:• Several bends• Welded structures• Tight assembly interfaces• Machined surfaces• Multiple assembled parts• Visible finished surfaces• New prototype designs The review may lead to something as small as moving a hole, changing a flange, opening an assembly gap or adjusting a non-critical tolerance. These changes are much easier to make before the first sample is produced.   A Practical Sheet Metal Drawing Checklist Before sending a drawing for quotation or production, check:• Are the critical tolerances clearly marked?• Are holes far enough from bends?• Is the bend radius suitable for the material and thickness?• Can the bends actually be made with available tool access?• Are weld requirements clearly defined?• Are cosmetic weld requirements limited to visible areas?• Can tools reach the required fasteners and joints?• Has surface finishing been considered?• Is the material grade clearly specified?• Do the 2D drawing, 3D model and BOM match?You do not need to solve every manufacturing question before contacting a supplier. But a clear drawing makes it much easier to identify which details need discussion before the first prototype.   Have a Sheet Metal Design to Review? Send your 2D drawing and STEP/STP model together with the material, quantity, finish and application requirements. YT Manufacturing can review manufacturability for sheet metal fabrication, bending, welding, CNC machining, finishing and assembly according to the project scope.

Read More

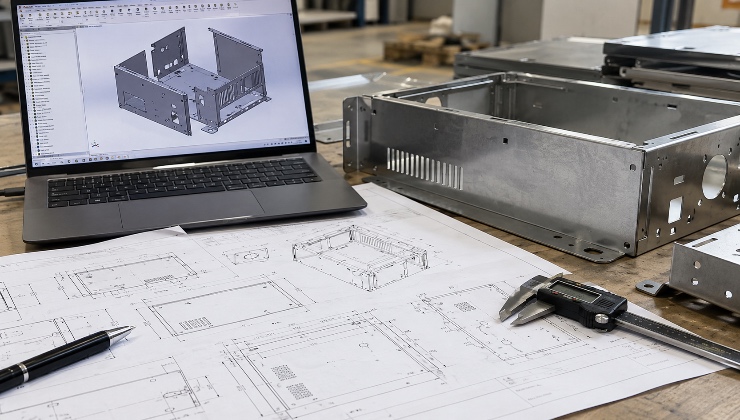

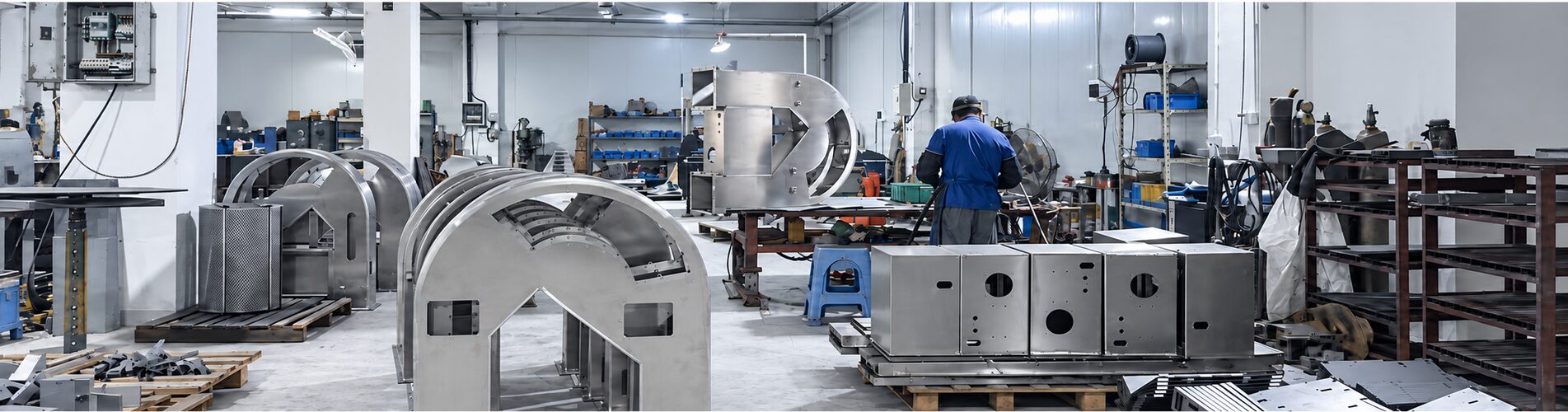

What Information Should You Send for a Sheet Metal Fabrication Quote?

A common RFQ starts with a drawing and a quantity. Sometimes that is enough. Sometimes it is not.A simple laser-cut panel may be easy to understand from a PDF or DXF. A welded enclosure, CNC machined component or assembled cabinet usually needs more information before the manufacturer can quote it properly.The goal is not to prepare a perfect document package before contacting a supplier. It is to make sure the details that affect manufacturing are clear.At YT Manufacturing, we work with sheet metal parts, enclosures, cabinets, welded structures, CNC machined components and assembled products. Based on the projects we receive, the following information is the most useful when preparing a quotation. 1. Start with a Drawing — When the Part Needs OneFor simple products, a reference photo, sample or basic dimensions may be enough for an initial discussion.But once a part includes details that cannot be judged from appearance alone, an engineering drawing becomes necessary.Typical examples include:• Hole positions• Bend dimensions• Thread specifications• Mounting interfaces• Weld locations• Critical dimensions• Assembly clearancesA dimensioned 2D drawing is usually the clearest way to communicate these details.For enclosures, cabinets and fabricated assemblies, it also helps us understand how panels, doors, brackets and internal components should fit together.If your design has gone through several revisions, send the latest approved version and make the revision number clear. Quoting from an outdated drawing can create unnecessary work for both sides.   2. Add a STEP File for Complex Parts and Assemblies   For more complex projects, a 3D model is very useful.We normally recommend STEP/STP for 3D file exchange because it can be opened by different CAD systems and does not depend on both companies using the same native software version.STEP files are especially useful for:• Sheet metal enclosures• Electrical cabinets• Machine frames• Welded structures• CNC machined parts• Multi-part assembliesNative SolidWorks files such as SLDPRT and SLDASM can also be reviewed when available, but STEP is generally easier for supplier-to-customer file exchange.For 2D files, PDF, DWG and DXF are commonly used. IGES/IGS can also be reviewed for selected 3D geometry.For most custom metal projects, the most useful combination is:Dimensioned 2D drawing + STEP/STP model The drawing tells us what needs to be controlled. The 3D model helps us understand the overall structure.   3. Specify the Material as Clearly as You Can   “Steel” or “aluminum” is not always enough for production.Different grades can behave differently during forming, welding, machining and finishing.Common examples include:Carbon and Coated SteelSPCCDC01SGCCQ235Q355 Stainless Steel201304316 Aluminum50526061Project-specified gradesIf the material has already been approved by your engineering team, include the exact grade in the RFQ.If it has not been finalized, tell us how the product will be used. Indoor equipment, outdoor structures, visible consumer products and marine applications do not have the same material requirements.A material can then be reviewed together with the structure, manufacturing process and intended environment.   4. Confirm the Sheet or Plate ThicknessThickness affects more than material cost.It can also affect:RigidityBendabilityWeldingHardware installationProduct weightAssemblyIf a cabinet uses different thicknesses for the body, door, mounting plate and structural supports, show this clearly in the drawing or BOM.For machined plates or larger fabricated structures, plate thickness or starting stock size should also be included where available.One point worth mentioning: using thicker metal is not always the best way to improve strength.Bends, ribs, reinforcement, welded supports and load paths can have just as much influence on the final structure.   5. Define the Surface Finish   Surface finish can change both the manufacturing sequence and the quotation.Common finishes include:Powder coatingWet paintingBrushed stainless steelPolishingAnodizingHot-dip galvanizingNatural weathering finishProject-specified coatingsFor visible products, it is also useful to define:ColorGloss levelBrushing directionVisible surface requirementsAreas that should remain uncoatedThis matters for products such as self-service kiosks, electrical cabinets, electric fireplaces and outdoor furniture, where the exterior surface is part of the finished product.For example, “black powder coating” still leaves room for interpretation. If appearance matters, a RAL color, approved sample or other agreed reference is better.   6. Tell Us the Quantity You NeedQuantity affects production planning.It can influence:Material purchasingCutting and nestingSetup timeWelding fixturesSurface finishingAssembly planningPackagingA one-piece prototype and a repeat order of 200 sets may use the same drawing, but the production approach will not be exactly the same.If you are still in the development stage, it helps to provide both quantities.For example:Prototype: 1–3 setsExpected production: 100 sets per orderThis tells us whether the current quote is only for verification or may later move into repeat production.   7. Tell the Supplier What Needs to Be AssembledThis is one of the areas where RFQs are often too vague.There is a major difference between supplying an empty metal enclosure and supplying an enclosure with hardware, internal components and wiring already installed.Depending on the project, YT Manufacturing can support:PEM nuts and studsThreaded insertsHardware installationComponent mountingCable routingSelected internal wiringMechanical assemblyFor more complex assemblies, the following are useful:Assembly drawingBOMComponent listWiring diagramReference photosPhysical sampleFor example, on an electric fireplace project, the manufacturing scope may include not only the metal housing, but also control-board installation, LED component installation, internal wiring and final assembly.That needs to be clear before the price is calculated.   8. Explain How and Where the Product Will Be UsedA short description of the application can prevent the wrong material, finish or manufacturing approach from being quoted.Useful information includes:Indoor or outdoor useIndustrial environmentMarine environmentFrequent cleaningCustomer-facing visible surfacesElectrical equipment integrationOutdoor weather exposureStructural installationYou do not need to write a long technical report.A sentence such as:“This cabinet will be installed outdoors and will contain electrical control components.”is already much more useful than sending only a cabinet drawing with no application information.The same applies to solar mounting structures, outdoor furniture, medical equipment frames and self-service terminals. The application helps explain why certain materials, finishes and design details matter.   9. Mark the Dimensions That Really MatterNot every dimension on a sheet metal part needs the same level of control.If certain dimensions affect assembly or function, mark them clearly.Typical examples include:• Mounting-hole positions• Datum surfaces• Component interfaces• Door alignment• Machined surfaces• Hole patterns• Assembly clearancesThis is particularly relevant for automation equipment, machine frames and parts that must connect with components made by another supplier.If an inspection report is required for certain dimensions, mention that during the RFQ stage.It is much easier to plan the inspection method before production than after the parts have already been made.   10. Mention Special Packaging RequirementsOur normal quotation is based on the product plus regular protective packaging, unless otherwise stated.Freight is generally not included in the product price and is discussed separately according to destination, shipment volume and delivery terms.If your project requires special packaging, tell us during the quotation stage.Examples include:Custom retail cartonsSpecial foam protectionWooden casesHeavy-duty palletsIndividual protective packagingExtra protection for glassSurface protection for finished productsCustomer-specified packagingSpecial packaging may involve additional material, labor or packing volume, so it needs to be calculated separately.This is particularly relevant for finished products such as electric fireplaces and outdoor furniture, where packaging has to protect both the product structure and the visible surfaces.   What If the Design Is Not Finished Yet?Not every project starts with a complete drawing package.Some RFQs begin with:• A reference photo• A physical sample• A sketch• A preliminary drawing• A 3D model• A partial BOMThat is fine for an initial discussion.For simple products, a reference image and basic dimensions may already be enough to understand the general requirement.For parts where the structure is not obvious, or where hole positions, bends, threads, tolerances or assembly interfaces matter, engineering drawings will normally be required before an accurate quotation can be prepared.The useful approach is to tell us what has already been decided and what is still open.For example:Material: not finalizedFinish: black powder coating preferredQuantity: 50–100 setsApplication: indoor industrial equipmentDrawing: preliminary versionThat gives us something practical to work with.   Example 1: Electrical Cabinet RFQA useful cabinet inquiry might include:2D drawing: PDF3D model: STEPMaterial: SPCCThickness: 1.5 mm / 2.0 mmFinish: Powder coating, specified RAL colorQuantity: 50 setsAssembly: Internal mounting plate and hardware installationApplication: Indoor electrical equipmentIf cable-entry positions, ventilation openings or internal mounting requirements are important, they should also be shown.This allows the quotation to reflect the actual cabinet rather than a generic sheet metal box.   Example 2: CNC Machined Part RFQFor a CNC machined component, the RFQ may look like this:3D model: STEP2D drawing: PDFMaterial: 6061 aluminumQuantity: 20 / 100 / 500 pcsCritical tolerances: Marked on drawingFinish: AnodizingInspection: Critical dimensions to be recordedIn this case, the tolerance information may have a larger impact on machining and inspection than the overall size of the part.   Example 3: Finished OEM Product RFQFor a finished product such as an electric fireplace or an outdoor furniture program, the RFQ may include:• Product drawing or reference sample• Overall dimensions• Material and finish• Component list• Assembly requirements• Target quantity• Packaging requirements• Target market or applicationIf the product includes electrical or decorative components, the internal mounting and assembly requirements should also be provided.Standard protective packaging can be included in the product quotation. Special packaging and freight are normally reviewed separately.   A Simple RFQ ChecklistBefore sending your inquiry, check whether you can provide the following:• 2D drawing• 3D STEP/STP file• Material and grade• Sheet or plate thickness• Surface finish and color• Quantity• Assembly requirements• Application or operating environment• Critical tolerances• Inspection requirements• Special packaging requirements, if anyYou do not need to have every item finalized before contacting us.For simple products, a reference image, sample or basic dimensions may be enough to start the discussion. For parts with unclear geometry or critical assembly details, engineering drawings will normally be needed before the quotation can be finalized.   Need a Quote for a Custom Metal Project?Send us the information you already have — drawing, STEP file, material, quantity or reference sample — together with a short description of the project.YT Manufacturing supports sheet metal fabrication, CNC machining, welding, surface finishing, hardware and component installation, selected wiring and mechanical assembly according to the agreed manufacturing scope.
