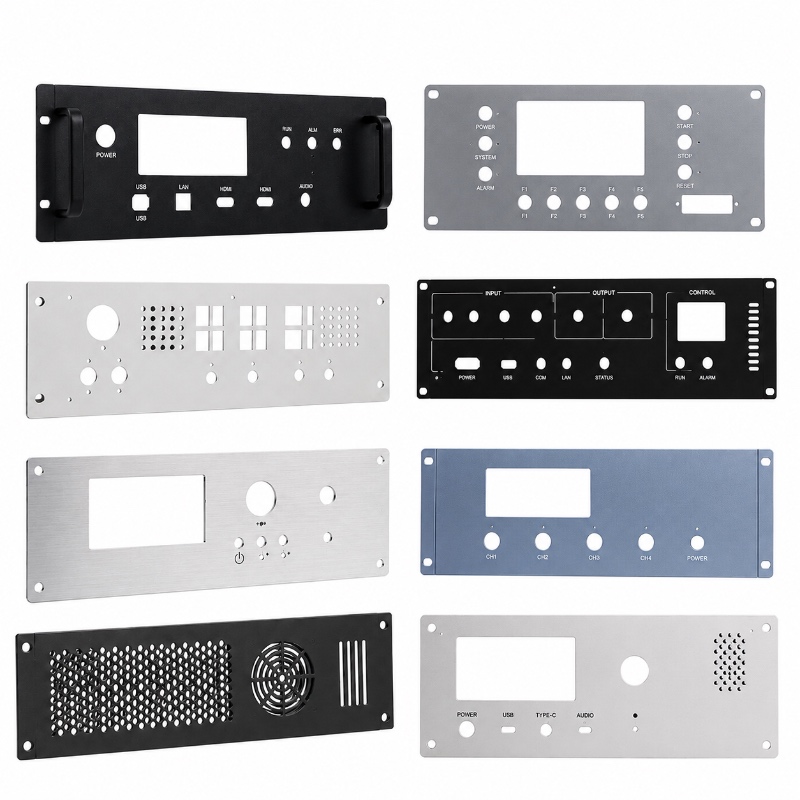

Custom Metal Front Panels
Custom Metal Front Panel Details

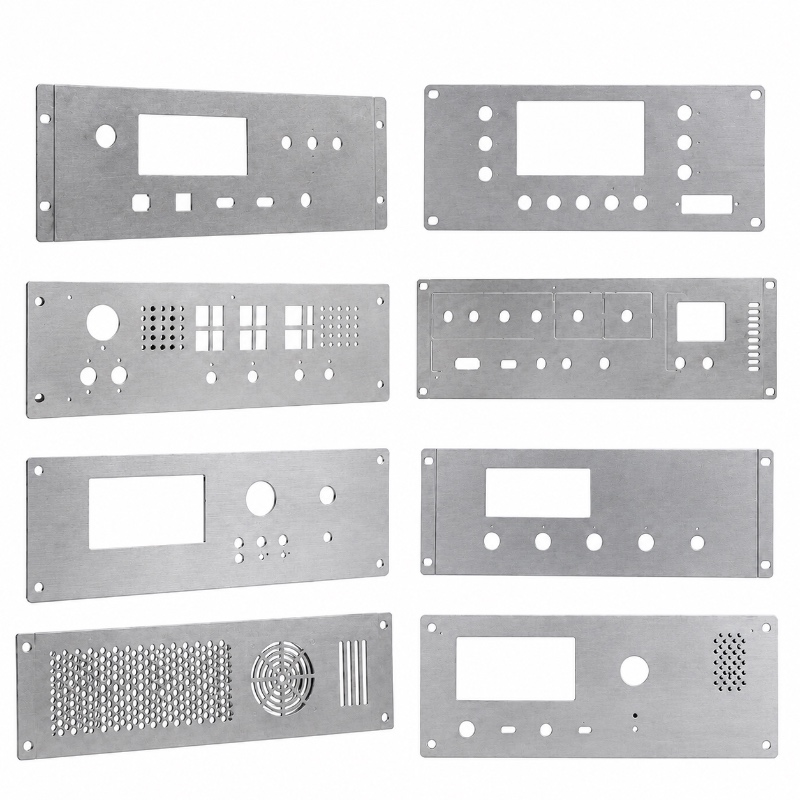

unfinish Custom Metal Front Panel

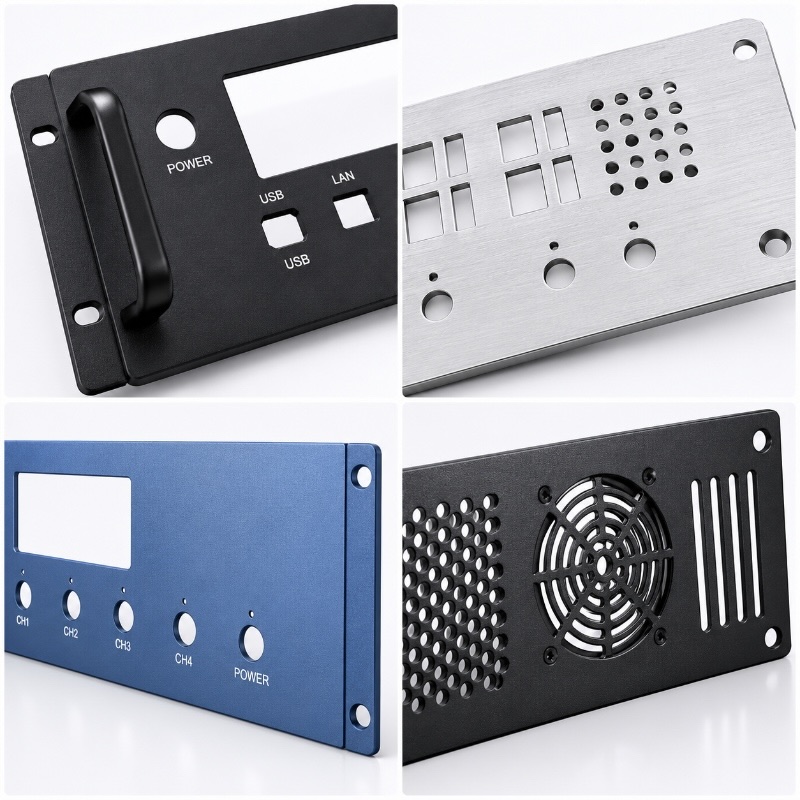

Custom Metal Front Panel

Custom metal front panel manufactured for displays, switches, buttons, connectors and equipment control interfaces. Precision cut-outs, mounting holes, surface finishes and marking areas can be customized according to the component layout and approved drawings.

  • Material :

    Aluminum / Stainless Steel / Carbon Steel

  • Common Grade :

    5052 / 6061 / 304 / SPCC / DC01 / Project-Specified

  • Thickness :

    According to Drawing

  • Size :

    Custom to Drawing

  • Surface Finish :

    Anodizing / Brushed / Powder Coating / Passivation / Project-Specified

  • Manufacturing Process :

    Laser Cutting / CNC Punching / CNC Machining / Bending / Finishing

  • Display & Interface Cut-outs :

    Custom to Components

  • Hole & Slot Layout :

    Custom to Drawing

  • Marking / Label Area :

    Project-Specified

  • Application :

    Industrial Control Equipment · Electronic Devices · Test & Measurement Equipment · Automation Systems

  • Overview

    Custom Metal Front Panels

    The front panel is developed around the actual display, switch, button, connector and control interface layout. Cut-outs, mounting holes, edge features and marking areas can be coordinated before production to support accurate component alignment, clean assembly and a consistent visible appearance.

    Applications: Industrial Control Equipment · Electronic Devices · Test & Measurement Equipment · Automation Systems

    Recommended Materials

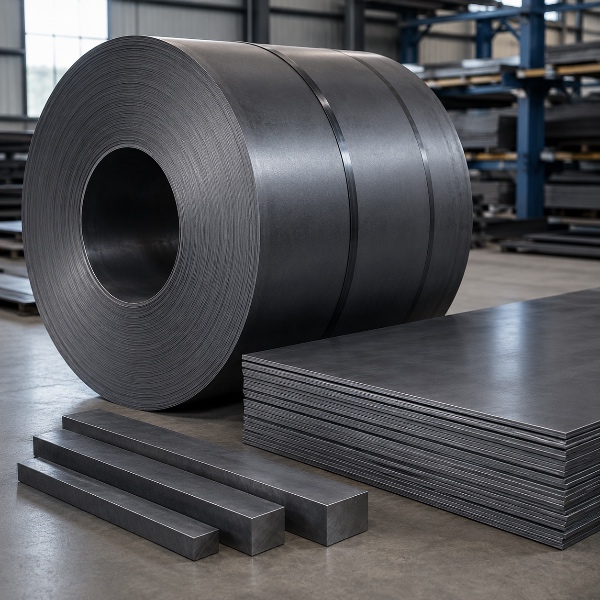

    • Carbon Steel

      Carbon Steel

      SPCC or DC01 is suitable for powder-coated front panels requiring rigid structure and cost-effective fabrication.support and higher load requirements.

    • Stainless steel 304 and 316

      Stainless Steel

      304 can be selected for front panels requiring corrosion resistance, durability or exposed brushed stainless surfaces.

    • Aluminum

      5052 is commonly used for formed front panels, while 6061 can be considered for selected CNC-machined panel designs requiring greater machining detail or rigidity.



    Read more materials



    Customization Options

    Components & Panels Customization Options

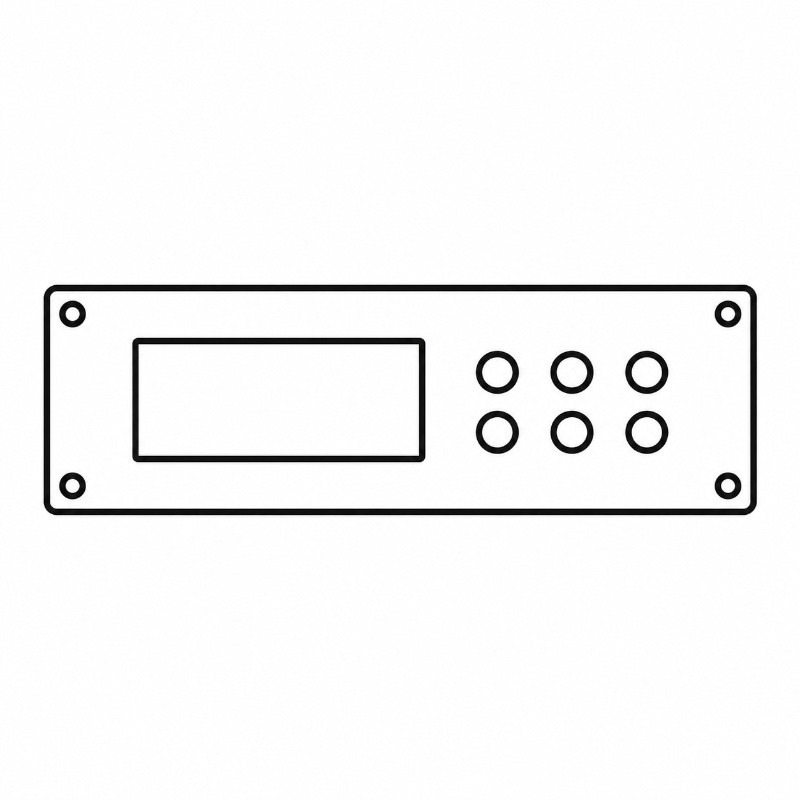

    • Custom Metal Front Panel Display & Control Cut-outs

      Display & Control Cut-outs

      Display windows, button holes, switch openings and control interfaces can be produced according to confirmed component dimensions.
    • Custom Metal Front Panel Connector & Mounting Layout

      Connector & Mounting Layout

      Connector openings, mounting holes, slots, threaded features and fastening points can follow the approved assembly drawing.

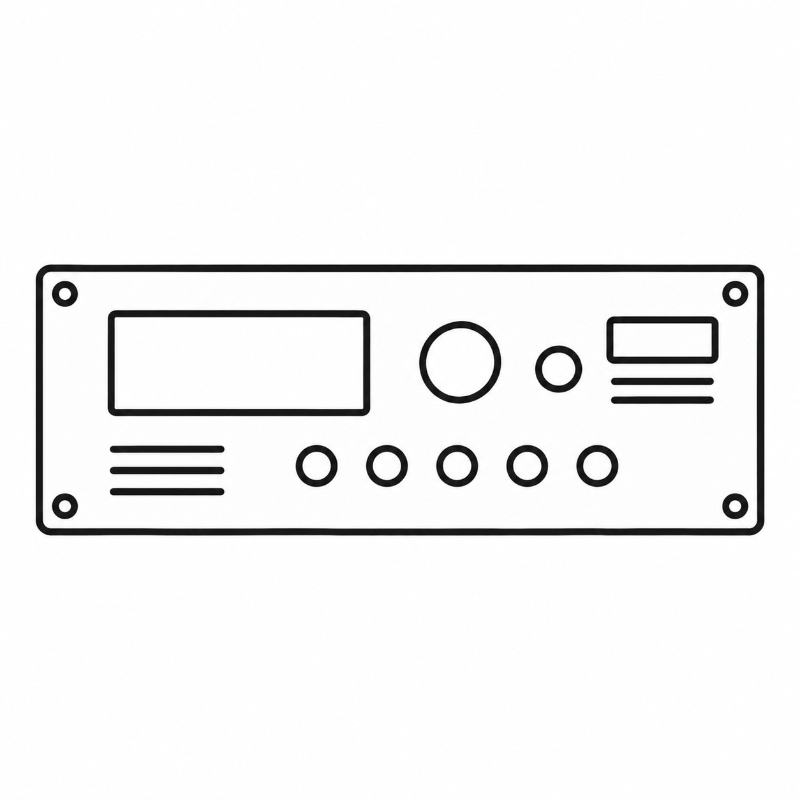

    • Custom Metal Front Panel Finish & Marking Areas

      Finish & Marking Areas

      Anodized, brushed or coated surfaces and designated logo, label or control-marking areas can be coordinated with the product design.

    Key Design Considerations

    • Custom Metal Front Panel Interface Accuracy

      Interface Accuracy

      Display, switch, button and connector cut-outs should align accurately with the specified components.

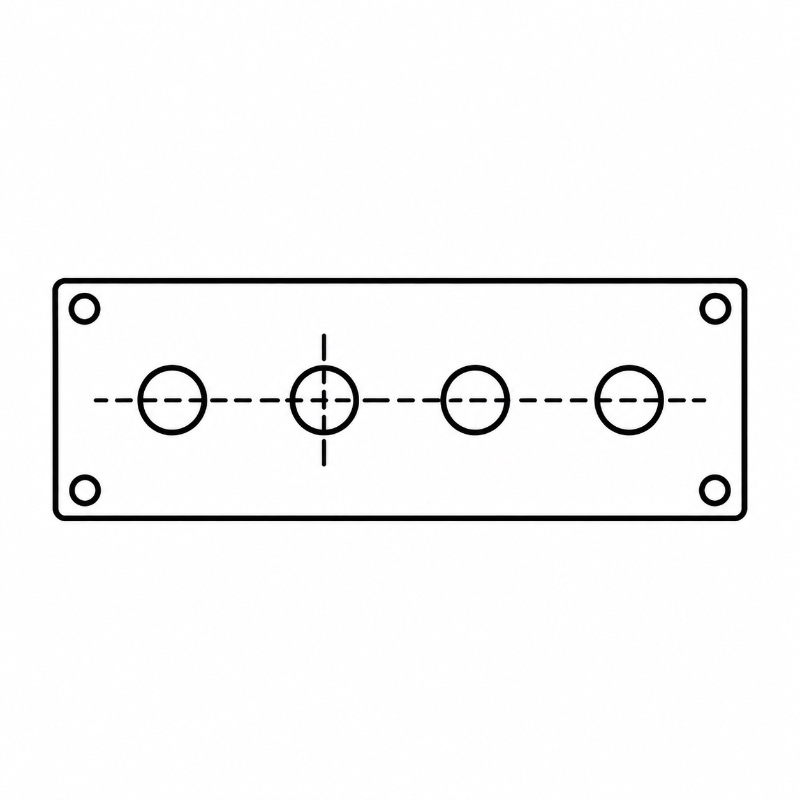

    • Custom Metal Front Panel Hole Position Accuracy

      Hole Position Accuracy

      Mounting holes and fastening features should maintain the specified location and spacing for reliable assembly.

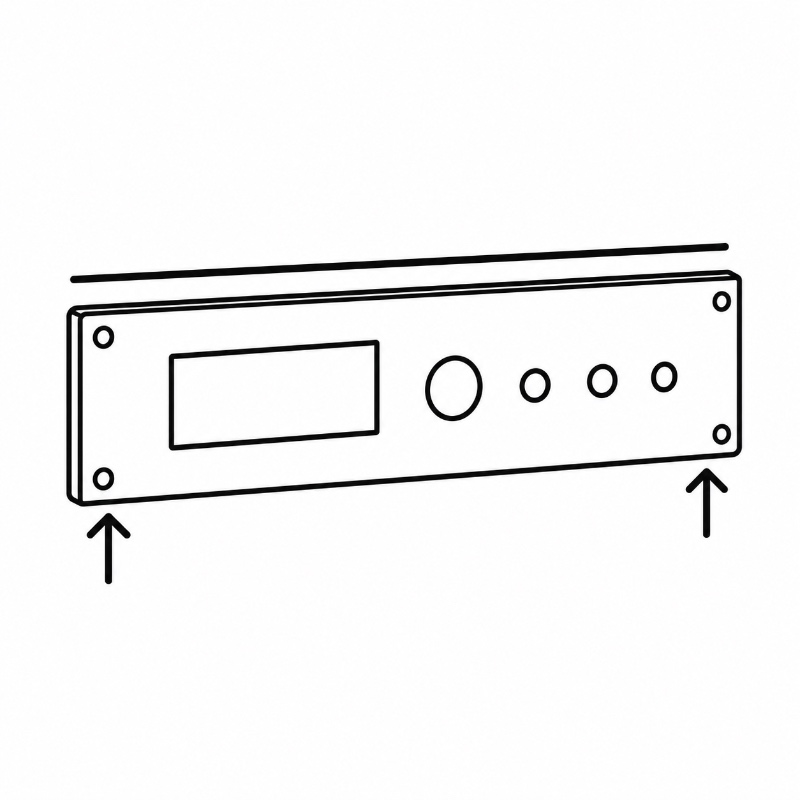

    • Custom Metal Front Panel Flatness & Panel Stability

      Flatness & Panel Stability

      Material thickness, panel size and machining or fabrication features should be considered to control unwanted deformation.

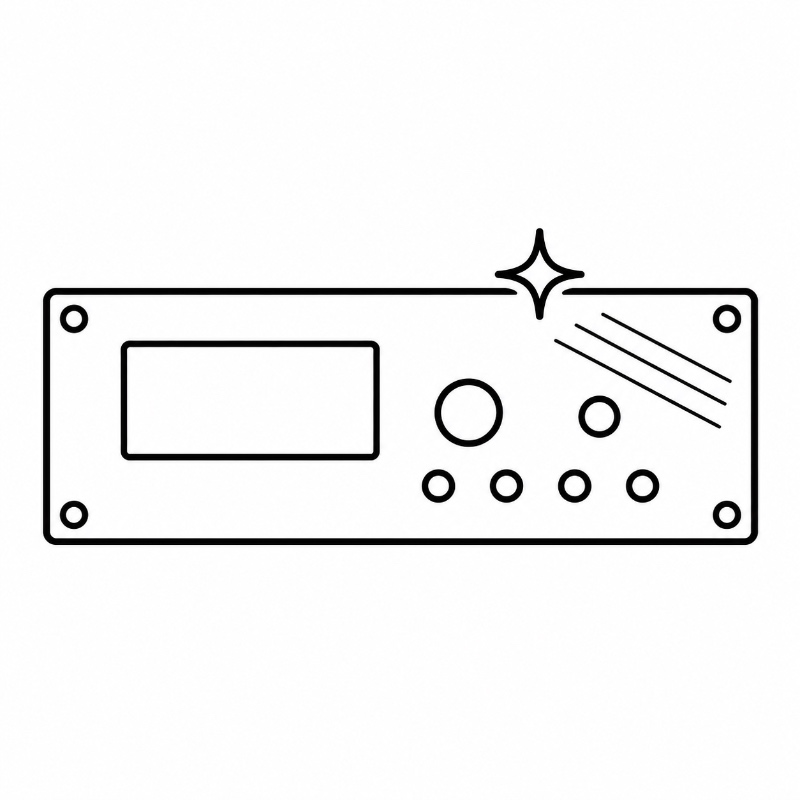

    • Custom Metal Front Panel Visible Surface Quality

      Visible Surface Quality

      Exposed surfaces require controlled fabrication, handling and finishing to maintain a consistent appearance.

    Manufacturing Process

    We provide a precision sheet metal manufacturing process covering cutting, punching, bending, machining, welding where required, surface finishing and final inspection.

    Tapping, countersinking, deburring, grinding, hardware insertion or other operations can be added according to the approved part drawing and project requirements.



    OEM Manufacturing Support

    Prototype production and DFM review are available for new projects before volume manufacturing. Learn more on our Capabilities page



    Prototype production and DFM review are available for new projects before volume manufacturing. Learn more on our Capabilities page

    After-Sales Support

    We support quality feedback, replacement parts, repeat production and approved design updates for ongoing OEM projects according to the agreed project scope.

    FAQ


    Can the front panel cut-outs be customized to our displays, switches and connectors?

    Yes. Display windows, button holes, switch openings, connector cut-outs and mounting features can be manufactured according to your component dimensions and approved drawings.

    Can connector and mounting holes be produced to specified tolerances?

    Yes. Hole patterns and interface openings can be manufactured according to the approved drawing and specified tolerance requirements.

    Can aluminum front panels be anodized?

    Yes. Anodizing can be selected for suitable aluminum front panels according to the required appearance, corrosion resistance and project specification.

    Can logo, label or control-marking areas be incorporated?

    Yes. Logo positions, control labels and marking zones can be incorporated into the approved panel design, with the final marking method confirmed according to project scope.
