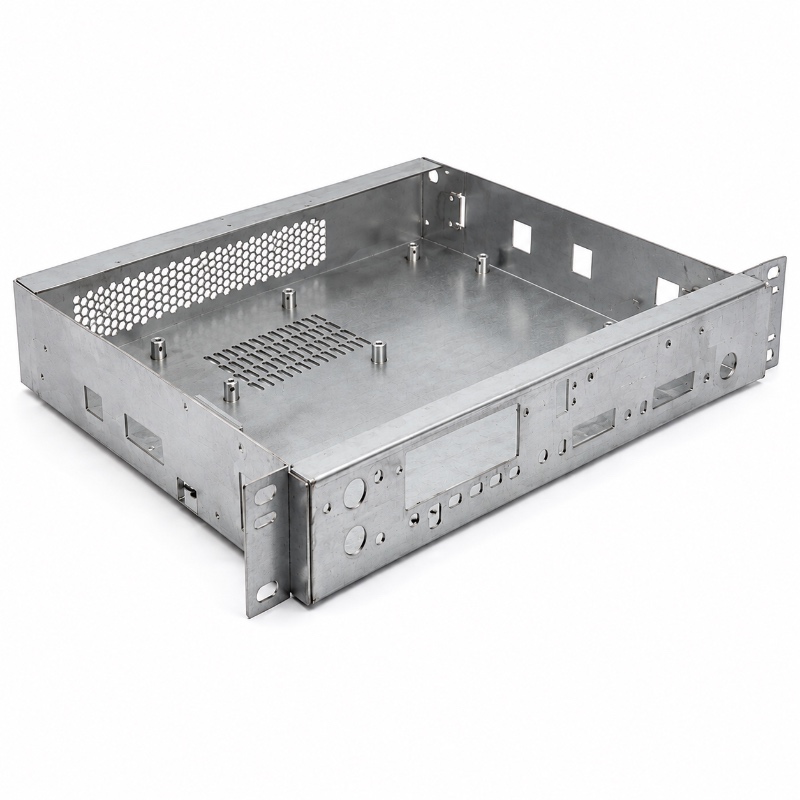

Custom Electronic Chassis Details

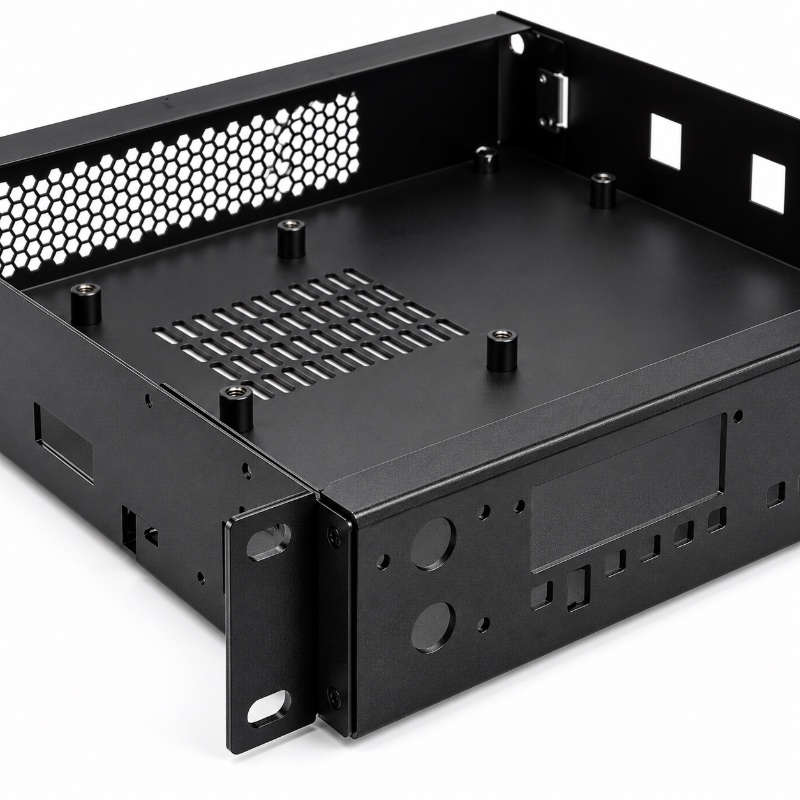

Custom Electronic Chassis

Custom electronic chassis designed for PCB assemblies, power supplies, control modules and electronic components. Mounting points, internal supports, ventilation, interface openings and fastening features can be manufactured according to the equipment layout and assembly requirements.

  • Material :

    Aluminum / Carbon Steel / Galvanized Steel / Stainless Steel

  • Common Grade :

    5052 / SPCC / DC01 / SGCC / 304 / Project-Specified

  • Thickness :

    According to Drawing

  • Size :

    Custom to Drawing

  • Surface Finish :

    Anodizing / Powder Coating / Zinc Plating / Passivation / Project-Specified

  • Manufacturing Process :

    Laser Cutting / CNC Punching / Bending / Machining / Welding / Finishing

  • PCB & Module Mounting :

    Custom

  • Hole & Interface Layout :

    Custom to Drawing

  • Hardware Integration :

    PEM Fasteners / Inserts / Standoffs / Project-Specified

  • Application :

    Industrial Electronics · Control Equipment · Power Electronics · Test & Measurement Equipment

  • Overview

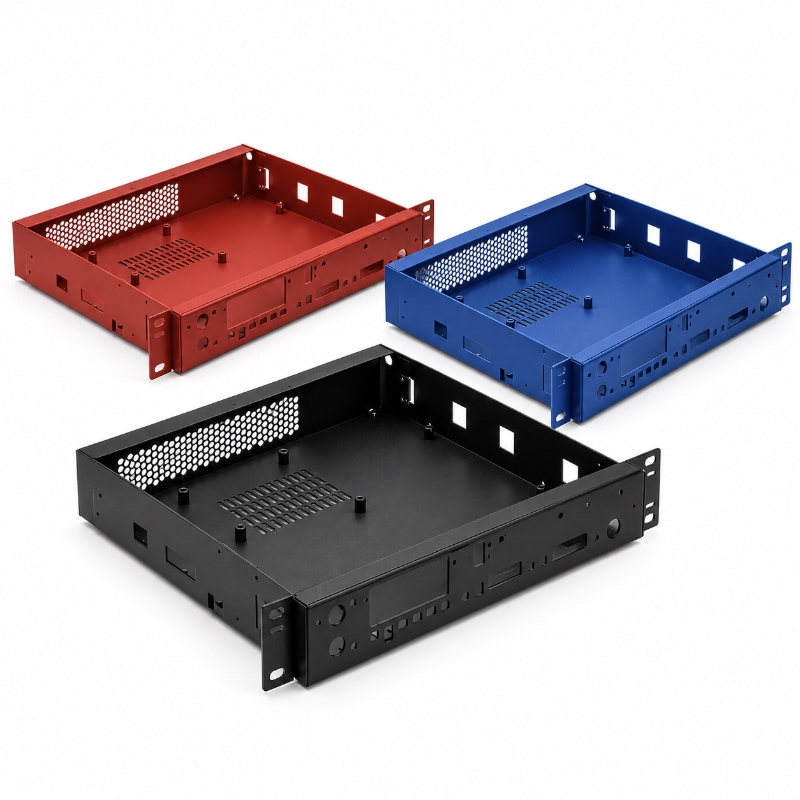

    Custom Colored Electronic Chassis

    The chassis is developed around the actual PCB, power supply, electronic module and connector layout. Mounting holes, supports, ventilation and fastening features can be coordinated before production to support accurate component installation and efficient final assembly.

    Applications: Industrial Electronics · Control Equipment · Power Electronics · Test & Measurement Equipment

    Recommended Materials

    • Carbon and Galvanized Steel

      Carbon & Galvanized Steel

      SPCC, DC01 or SGCC can be selected for rigid chassis structures requiring cost-effective fabrication and durable finishes.

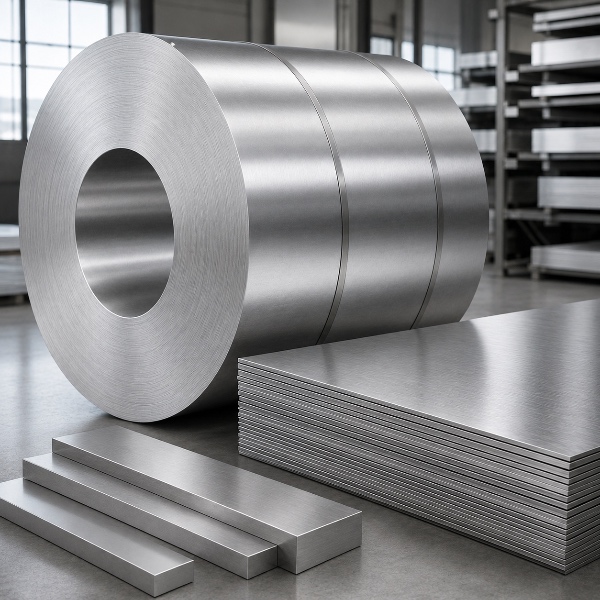

    • Stainless steel 304 and 316

      Stainless Steel

      304 can be used for selected chassis requiring higher corrosion resistance or exposed stainless steel surfaces.

    • Aluminum

      5052 is commonly used for lightweight electronic chassis requiring good formability, corrosion resistance and anodized or coated finishes.



    Read more materials



    Customization Options

    Components & Panels Customization Options

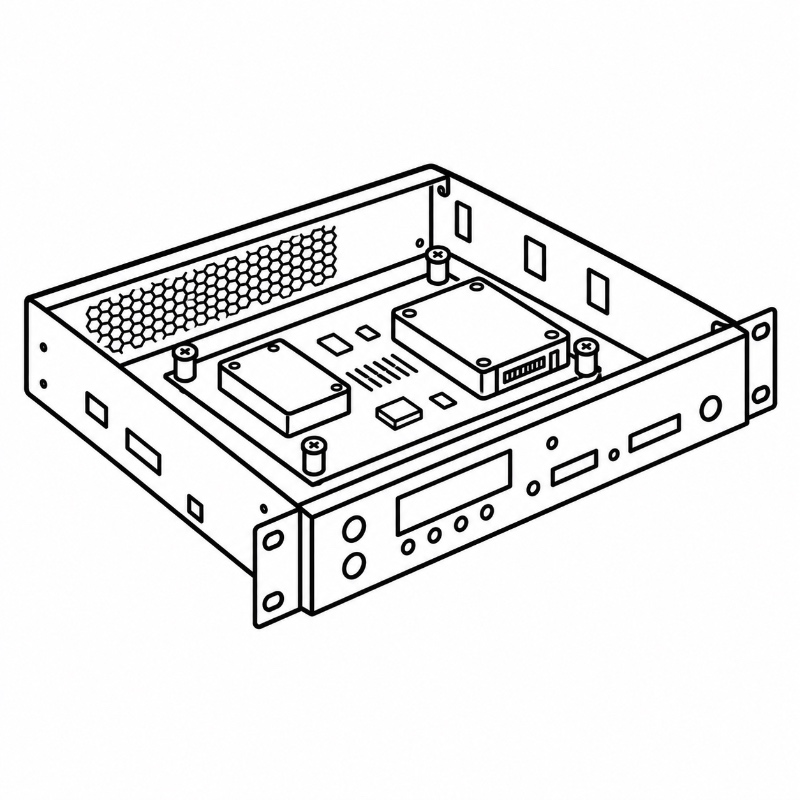

    • Electronic Chassis PCB & Module Mounting

      PCB & Module Mounting

      Mounting holes, standoffs, brackets and internal supports can be arranged around PCBs, power supplies and electronic modules.

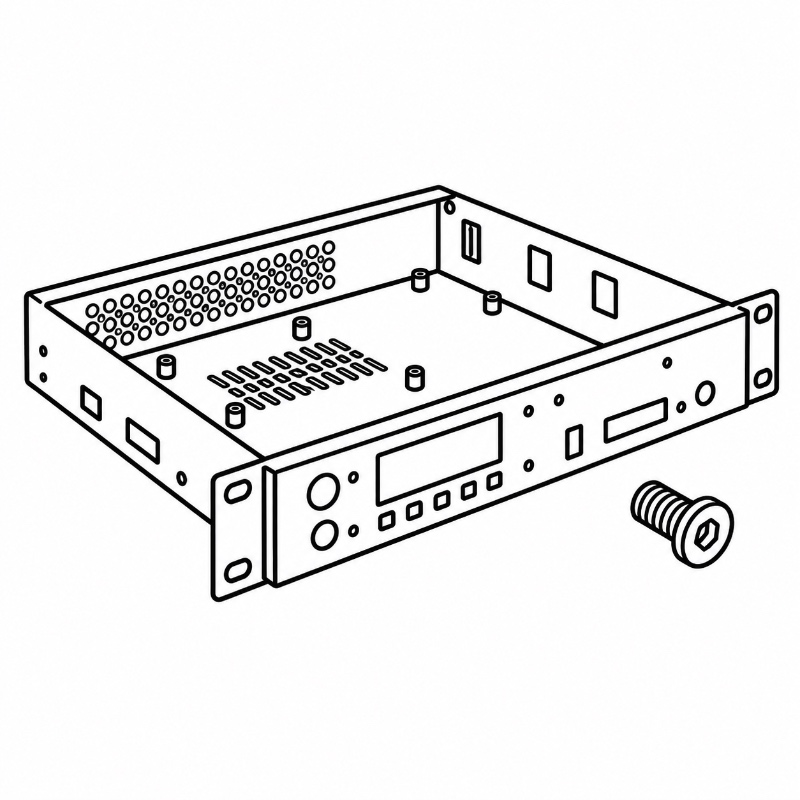

    • Electronic Chassis Openings & Hardware

      Openings & Hardware

      Connector openings, slots, threaded holes, PEM fasteners and inserts can be produced according to the approved assembly drawing.

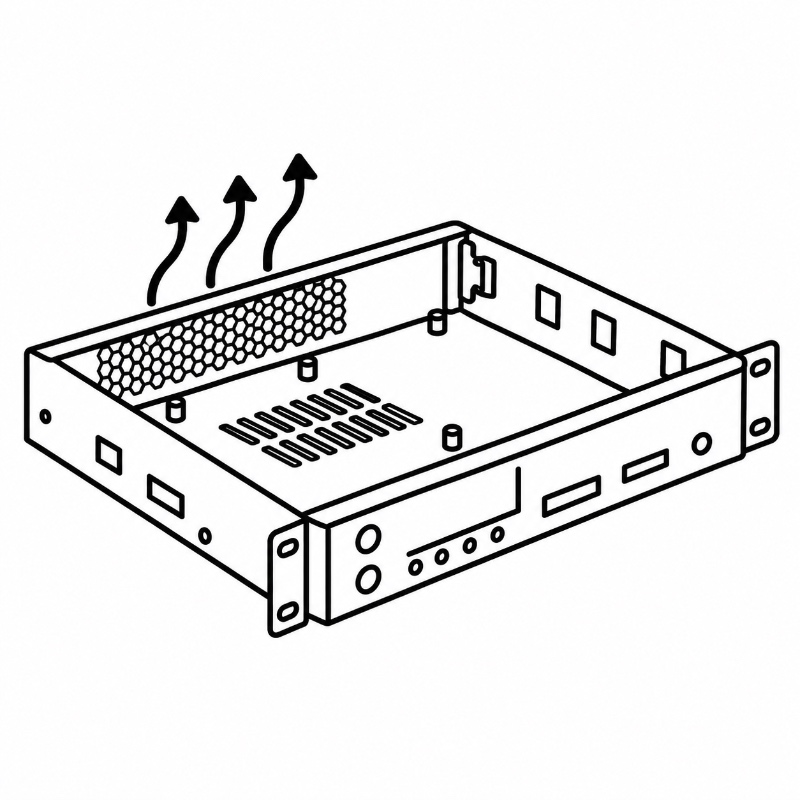

    • Electronic Chassis Ventilation & Structure

      Ventilation & Structure

      Ventilation slots, perforation, bends and reinforcement features can be customized according to thermal and structural requirements.

    Key Design Considerations

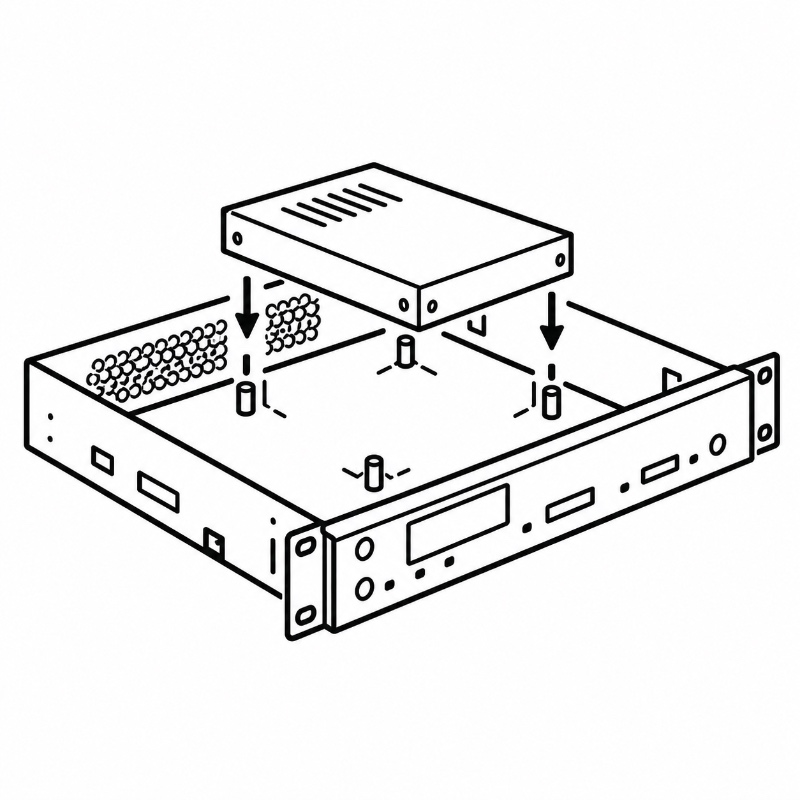

    • Electronic Chassis Component Fit

      Component Fit

      Mounting positions and internal clearances should match the actual PCB, power supply and module dimensions.

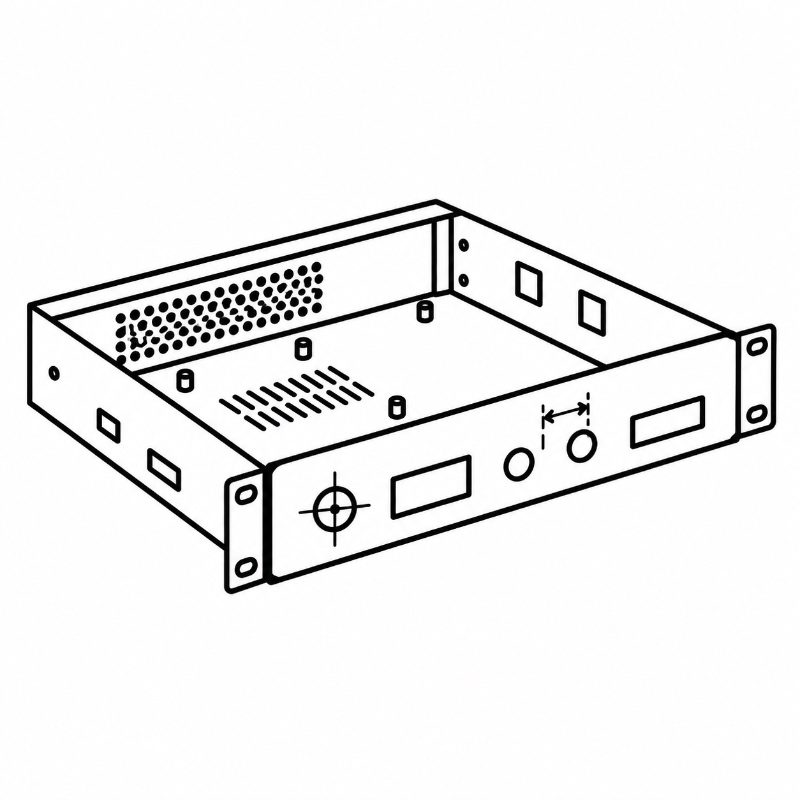

    • Electronic Chassis Hole Position Accuracy

      Hole Position Accuracy

      Mounting holes, connector openings and fastening points should maintain the specified location and spacing.

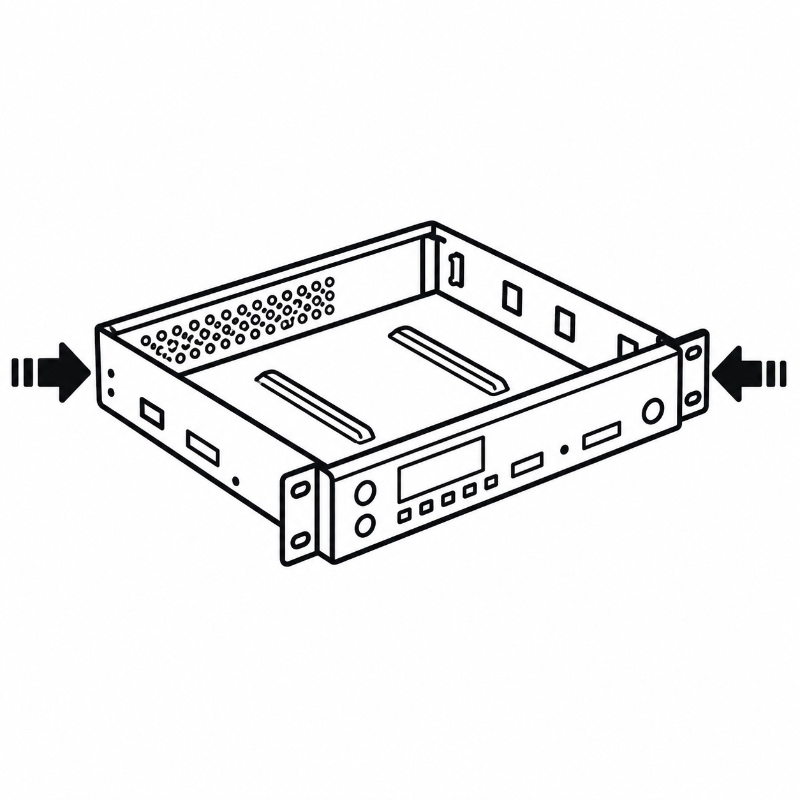

    • Electronic Chassis Structural Rigidity

       Structural Rigidity

      Material thickness, bends and reinforcement should provide sufficient chassis stability for the installed components.

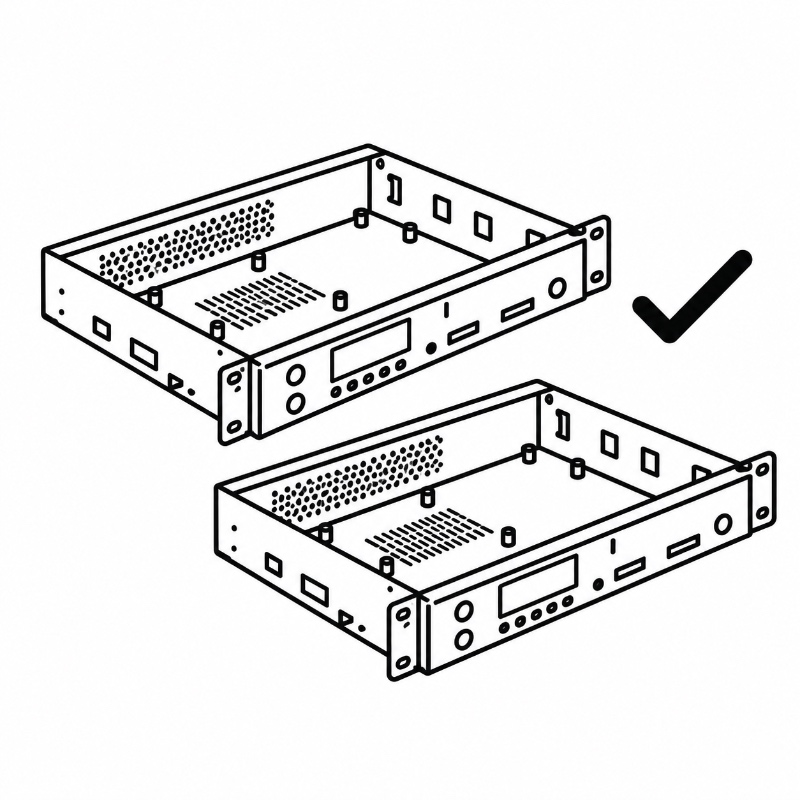

    • Electronic Chassis Assembly Consistency

      Assembly Consistency

      Panel fit, fastening points and hardware positions should remain consistent to support efficient repeat assembly.

    Manufacturing Process

    We provide a precision sheet metal manufacturing process covering cutting, punching, bending, machining, welding where required, surface finishing and final inspection.

    Tapping, countersinking, deburring, grinding, hardware insertion or other operations can be added according to the approved part drawing and project requirements.



    OEM Manufacturing Support

    Prototype production and DFM review are available for new projects before volume manufacturing. Learn more on our Capabilities page



    Prototype production and DFM review are available for new projects before volume manufacturing. Learn more on our Capabilities page

    After-Sales Support

    We support quality feedback, replacement parts, repeat production and approved design updates for ongoing OEM projects according to the agreed project scope.

    FAQ


    Can the chassis be customized to our PCB and electronic module layout?

    Yes. Mounting holes, standoffs, brackets, connector openings and ventilation features can be manufactured according to your PCB and component layout.

    Can PEM fasteners and threaded hardware be installed?

    Yes. PEM nuts, studs, standoffs, threaded inserts and other hardware can be installed according to the approved chassis design.

    Can connector and mounting holes be produced to our required positions?

    Yes. Hole patterns, slots and interface openings can be manufactured according to the approved drawing and specified tolerance requirements.

    Can the same chassis be reproduced consistently for repeat orders?

    Yes. Approved drawings, process controls and inspection requirements can be maintained to support consistent repeat production.
