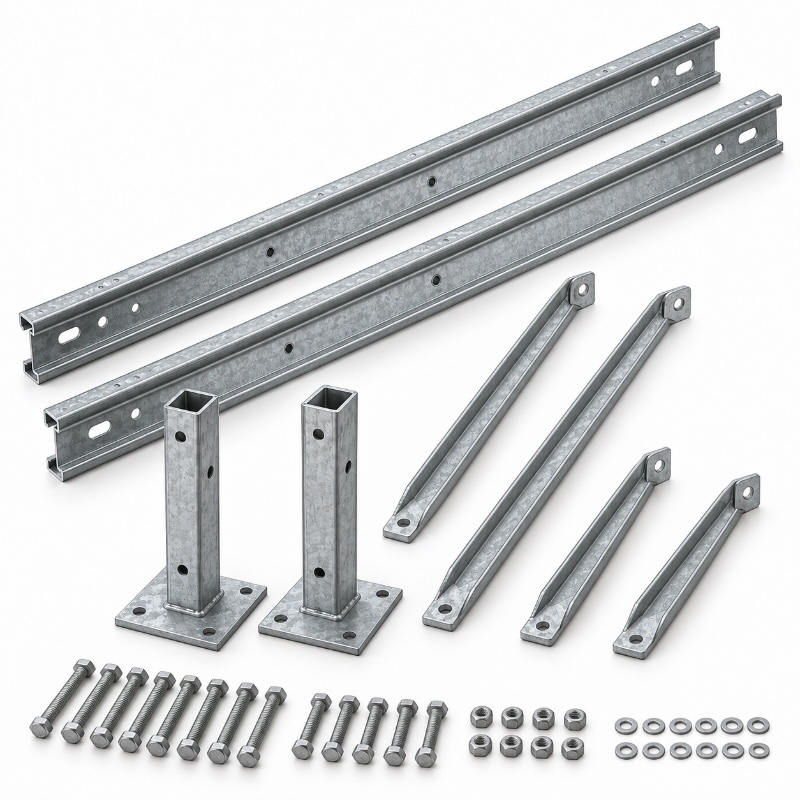

Custom metal mounting structures manufactured for solar panels in ground-mounted, rooftop and other photovoltaic projects. Posts, rails, beams, brackets and connection components can be fabricated or processed according to customer-approved engineering drawings and installation requirements.
Material :
Zn-Al-Mg Coated Steel / Structural Carbon Steel / Aluminum / Stainless SteelCommon Grade :
Q235 / Q355 / 6061 / 6063 / 304 / Project-SpecifiedThickness :
According to DrawingSize :
Custom to DrawingSurface Finish :
Factory Zn-Al-Mg Coating / Hot-Dip Galvanizing / Anodizing / Passivation / Project-SpecifiedManufacturing Process :
Cutting / Punching / Bending / Drilling / Machining / FinishingMounting Type :
Ground / Roof / Project-SpecifiedRail & Support Configuration :
Custom to DrawingConnection Method :
Bolted / Clamped / Project-SpecifiedInstallation Interface :
Foundation / Roof / Base Plate / Project-SpecifiedApplication :

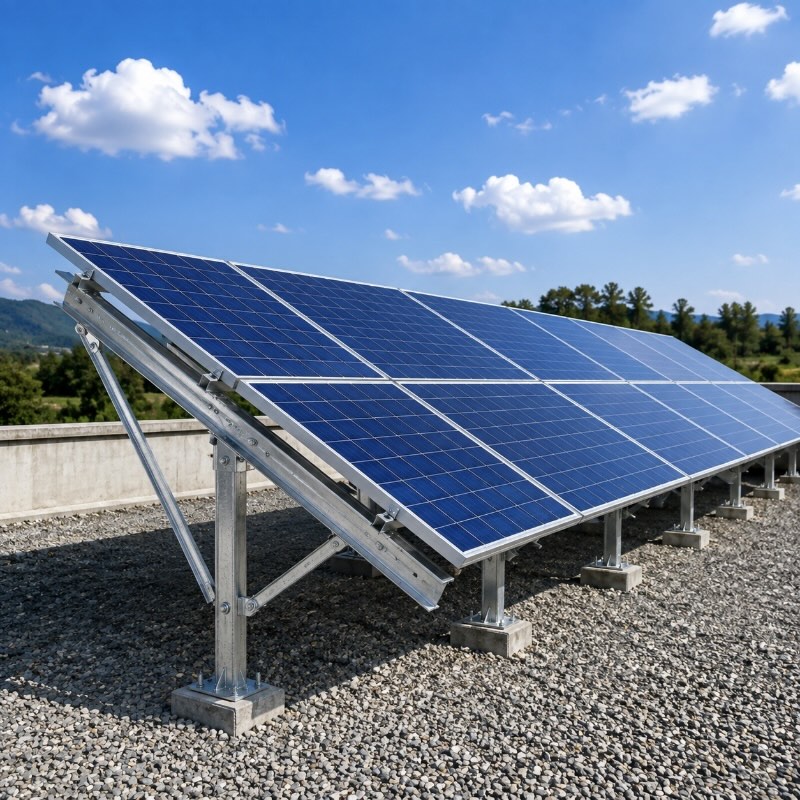

Ground-Mounted Solar · Rooftop PV · Commercial Solar Projects · Project-Specified PV Structures · New Energy
Overview
The mounting structure is fabricated around the approved panel layout, support geometry and installation interface. Posts, rails, beams, brackets and connection points can be coordinated before production to support efficient assembly and consistent site installation.
Applications: Ground-Mounted Solar · Rooftop PV · Commercial Solar Projects · Project-Specified PV Structures · New Energy
Recommended Materials And Finish

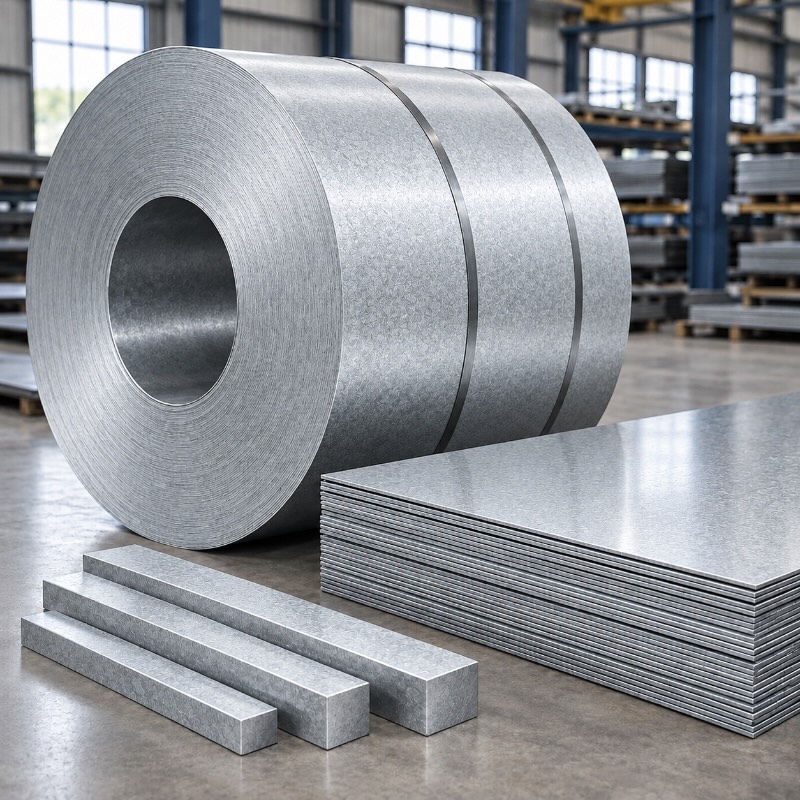

Zn-Al-Mg Coated Steel

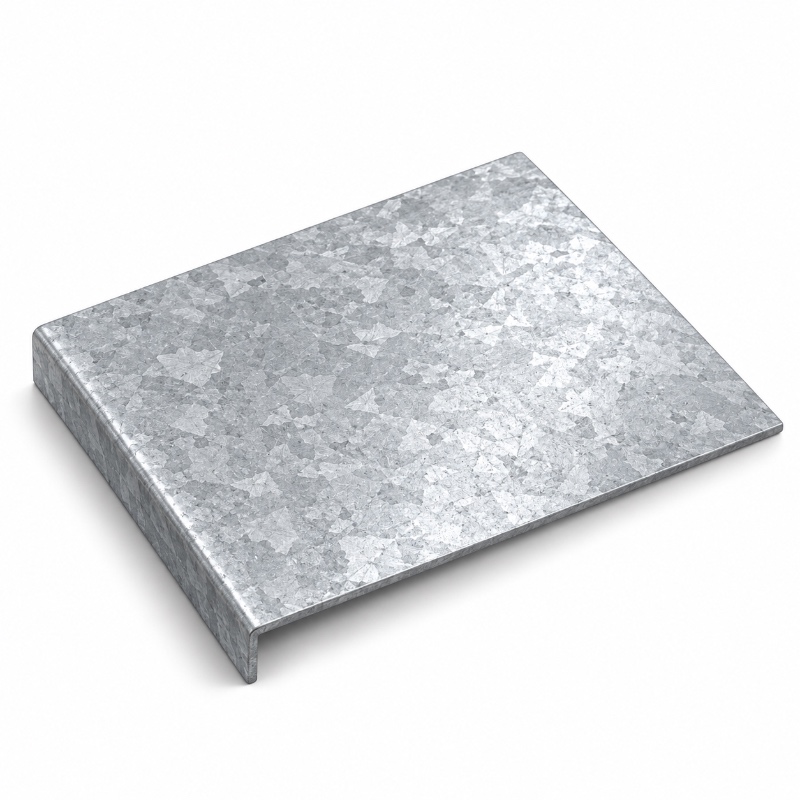

Hot-Dip Galvanized Structural Steel
Aluminum
Customization Options
Frames & Structures Customization Options

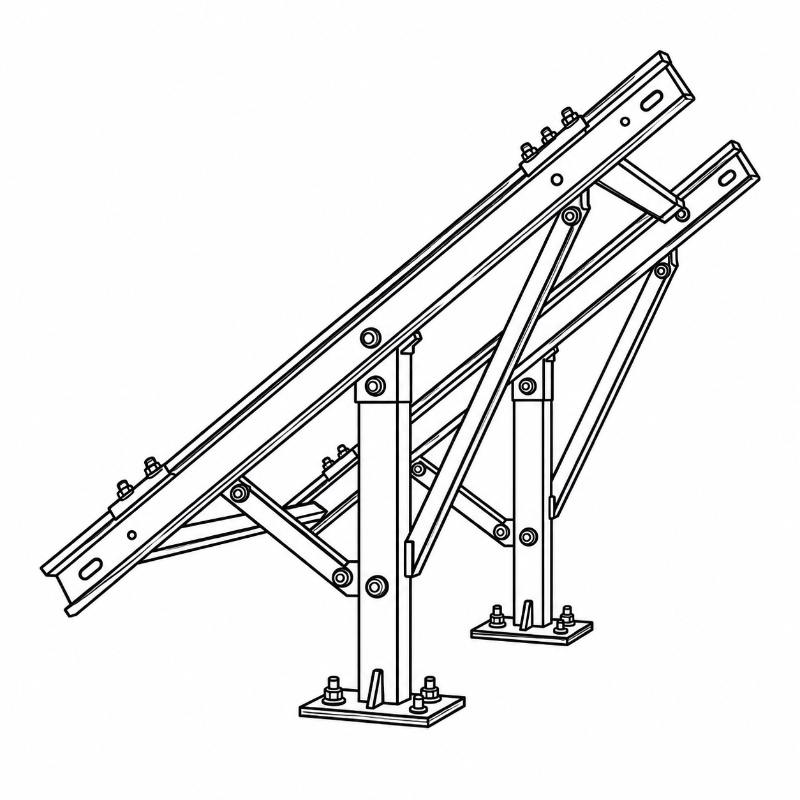

Support Geometry & Layout

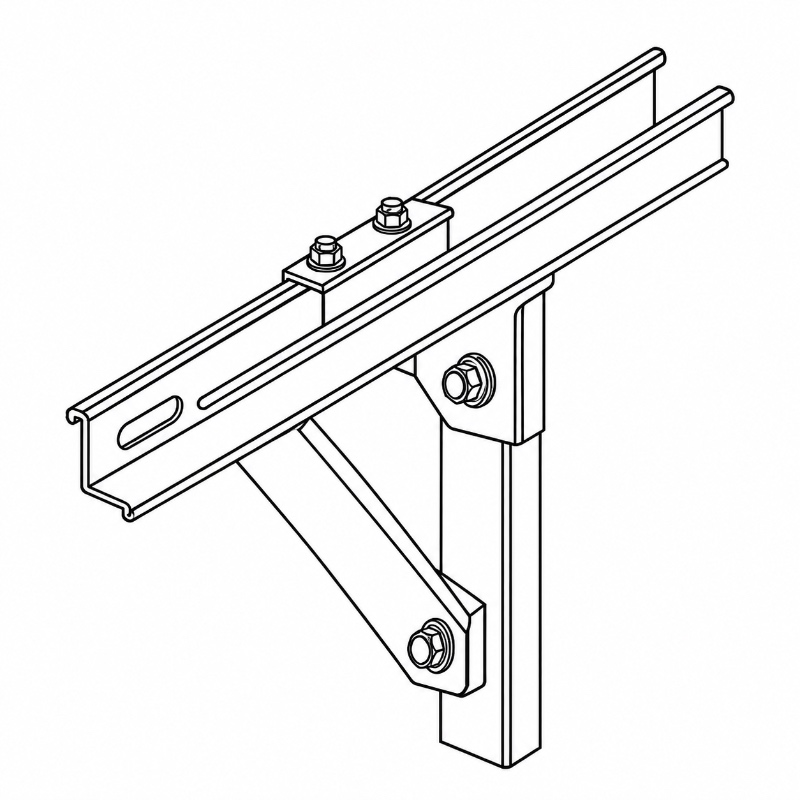

Brackets & Connection Details

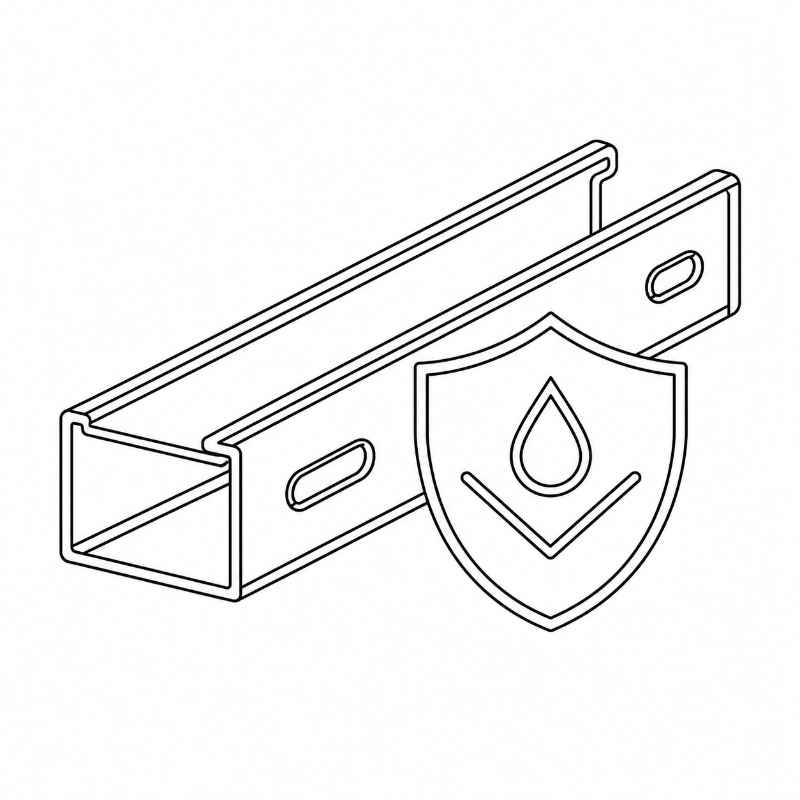

Material & Corrosion Protection
Key Design Considerations

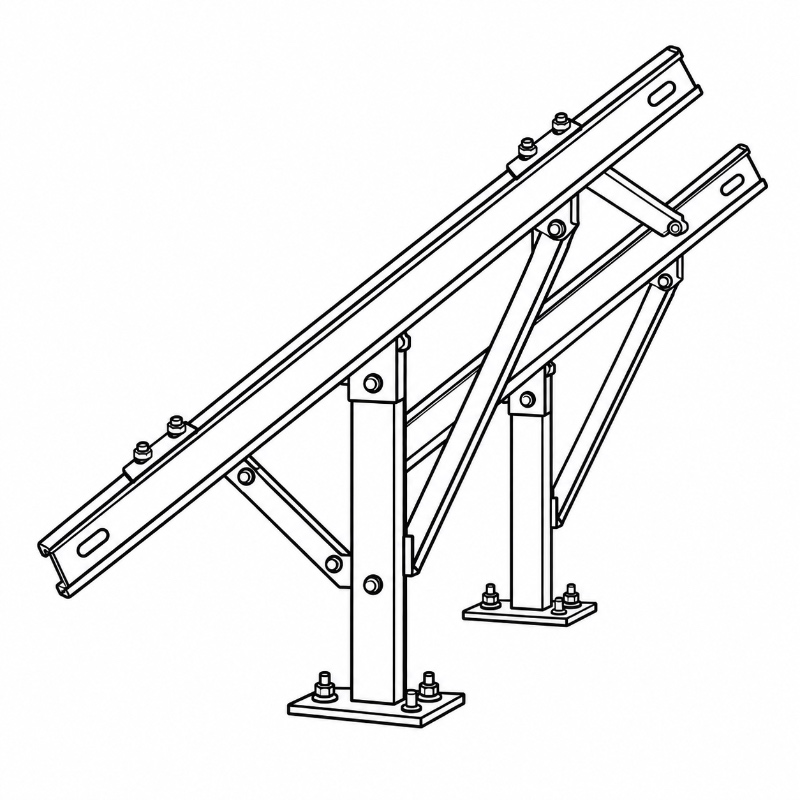

Structural Layout

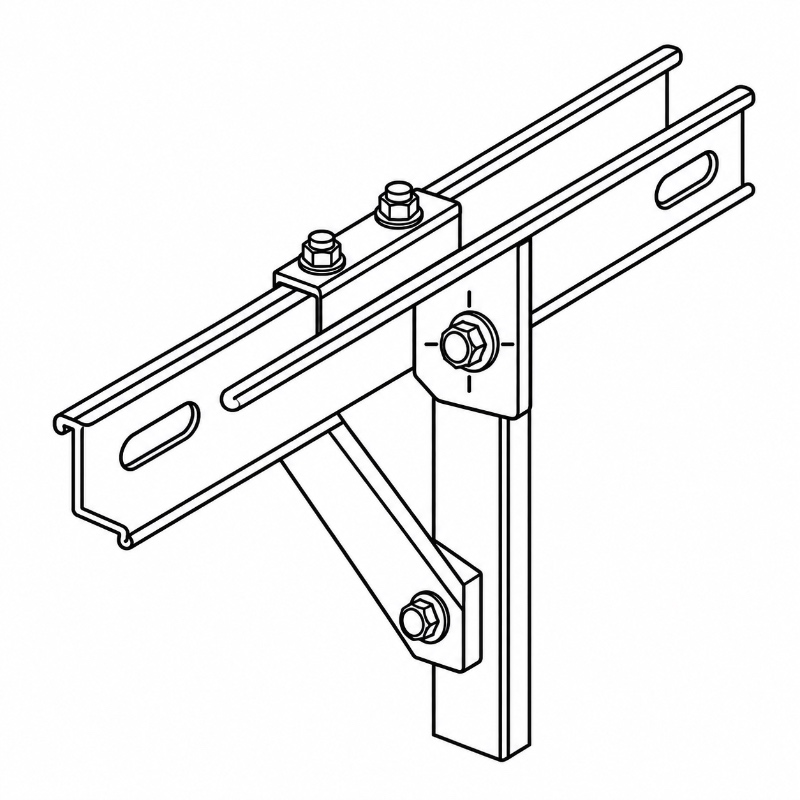

Connection Accuracy

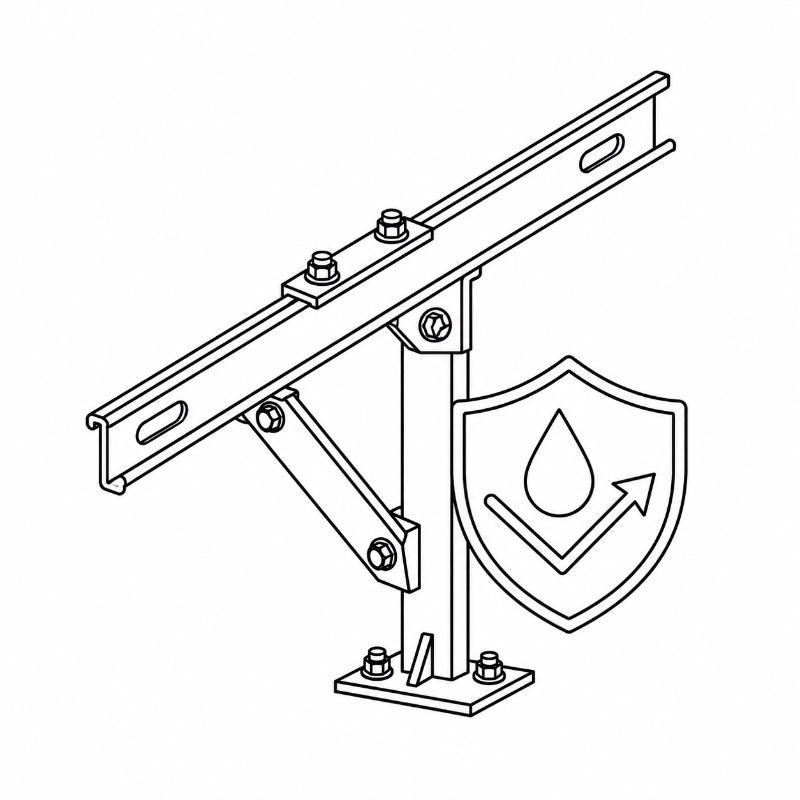

Corrosion Protection
Site Installation
Manufacturing Process
We provide photovoltaic support-component fabrication covering material preparation, cutting, punching, bending, drilling, machining, surface finishing and final inspection.
OEM Manufacturing Support
Prototype production and DFM review are available for new projects before volume manufacturing. Learn more on our Capabilities page
After-Sales Support
We support quality feedback, replacement parts, repeat production and approved design updates for ongoing OEM projects according to the agreed project scope.
FAQ
Yes. Posts, beams, rails, brackets, holes and connection components can be fabricated or processed according to customer-approved engineering drawings and project requirements.
Yes. Zn-Al-Mg coated steel can be processed for suitable mounting components according to the specified base material, coating system and project requirements.
Yes. Hot-dip galvanizing can be applied where specified, according to the approved material and corrosion-protection requirements.
We manufacture structural components according to customer-approved engineering drawings and specified wind-load, snow-load and project requirements. Final structural verification depends on the complete mounting system and engineering design.
